Brand	ABB
Efficiency	IE3
Frame Size	315
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	4
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Output Power (kW)	200
Rated Power (kW)	200
Voltage (V)	690Y/415D
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP66
Dimensions (mm)	1734 X 874 X 1134
Phases	3
Rated Voltage (V)	690Y/415D
Weight (kg)	1260

Motors

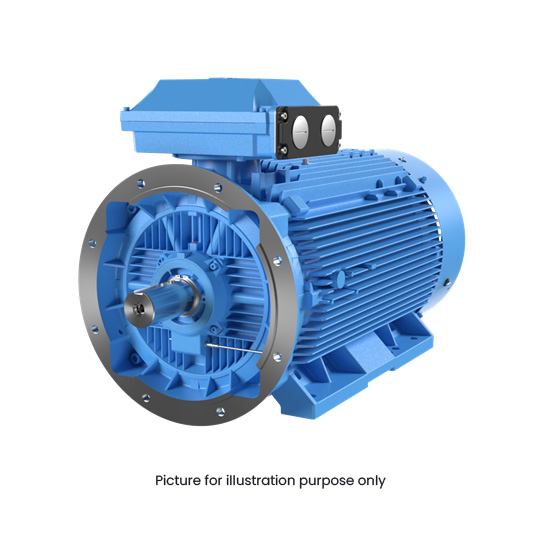

ABB IE3 CAST IRON MOTOR 4P 200kW 400VD FOOT/BIG FLANGE MOUNT B35 IP66 3GBA312420-HDM
