Brand	ABB
Efficiency	IE3
Frame Size	315
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Rated Power (kW)	160
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP66
Dimensions (mm)	1534 X 874 X 1134
Weight (kg)	1020

Motors

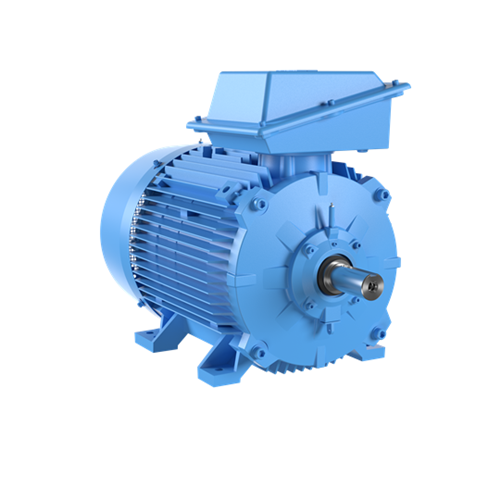

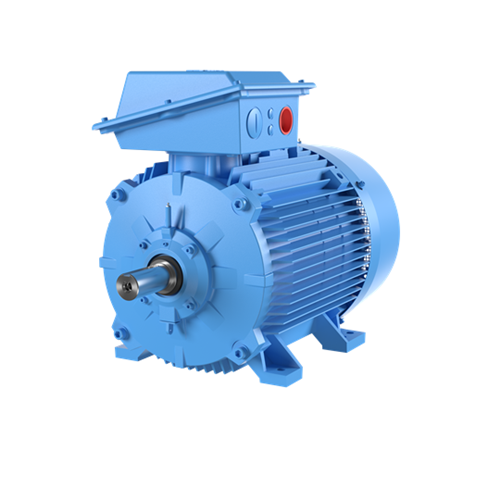

ABB IE3 CAST IRON MOTOR 2P 160kW 400VD FOOT MOUNT B3 IP66 3GBA311240-ADM
