Brand	ABB
Efficiency	IE3
Frame Size	280
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	4
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Output Power (kW)	90
Rated Power (kW)	90
Voltage (V)	690Y/415D
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP66
Dimensions (mm)	1320 X 760 X 1008
Phases	3
Rated Voltage (V)	690Y/415D
Weight (kg)	700

Motors

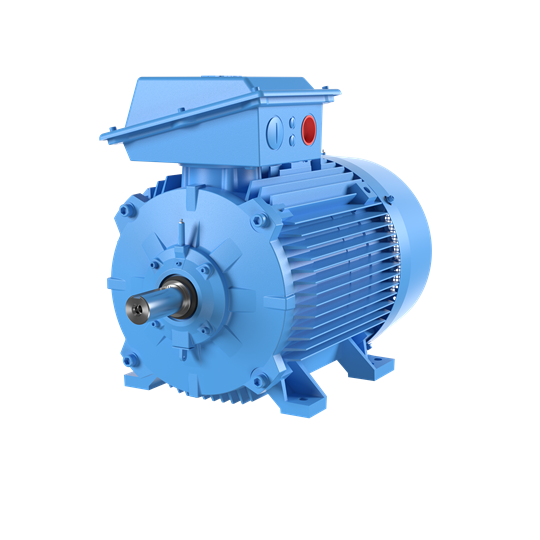

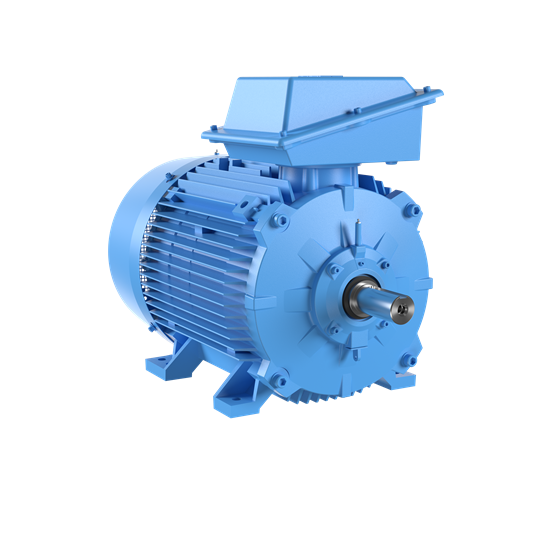

ABB IE3 CAST IRON MOTOR 4P 90kW 400VD FOOT MOUNT B3 IP66 3GBA282270-ADF
