Brand	ABB
Efficiency	IE3
Frame Size	280
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Flange mounted, large flange, IM B5, IM 3001
Rated Power (kW)	90
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Dimensions (mm)	1320 X 760 X 1008
Weight (kg)	687

Motors

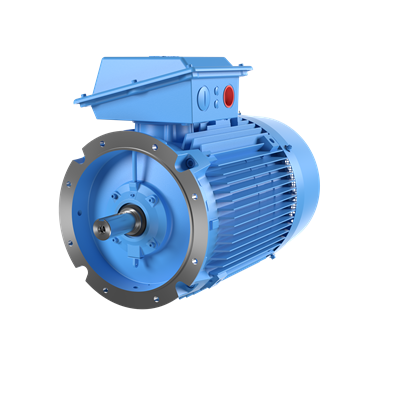

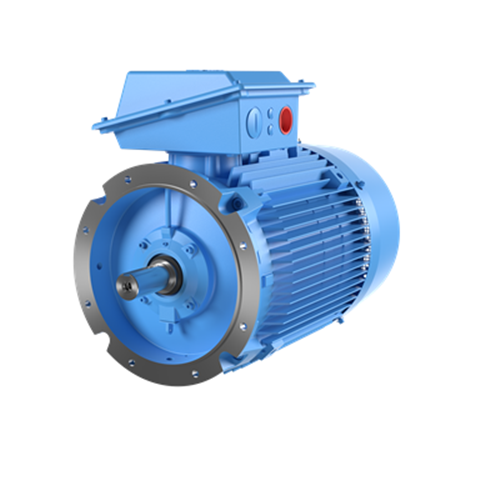

ABB IE3 CAST IRON MOTOR 2P 90kW 400VD BIG FLANGE MOUNT B5 IP66 M2BAX280SMC 3GBA281270-BDF
