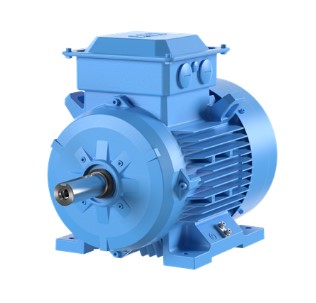

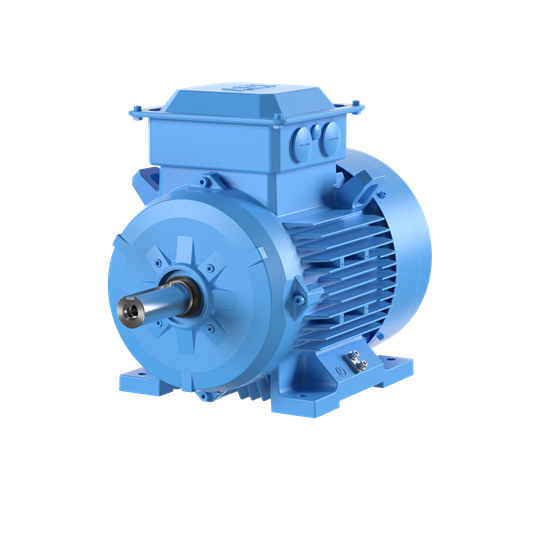

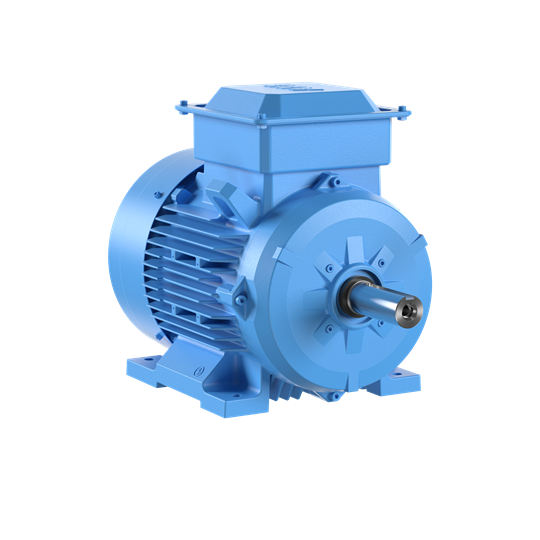

ABB IE3 CAST IRON MOTOR 4P 22KW 400VD FOOT MOUNT B3 IP66 3GBA182420-ADF

The IE3 Premium Efficiency Cast Iron Squirrel Cage Motor is a powerful 3-phase motor with a capacity of 22 kW and a current rating of 41.60 A. It operates at a voltage of 400 V AC and has a speed of 1470 r/min. With a power factor of 0.82 and an efficiency rating of 93%, this motor is designed to provide optimal performance. The motor features a connection configuration D, allowing for easy installation and setup. It also has the ability to rotate in both directions, providing flexibility in various applications. In terms of construction, the motor has an insulation class ICLF and belongs to the IM Class IMB3 IM1001. It is made from durable cast iron material, ensuring long-lasting durability and reliability. With an IE Class IE3 rating for 50 Hz operation, this motor meets high energy efficiency standards. The frame size is 180, making it suitable for various industrial applications. To protect against dust and water ingress, the motor has a degree of protection IP55, providing peace of mind in challenging environments. Overall, the IE3 Premium Efficiency Cast Iron Squirrel Cage Motor offers superior performance, energy efficiency, and durability for demanding industrial applications.
