Brand	ABB
Efficiency	IE3
Frame Size	160
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Flange mounted, large flange, IM B5, IM 3001
Output Power (kW)	11
Rated Power (kW)	11
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Dimensions (mm)	810 X 460 X 670
Weight (kg)	139

Motors

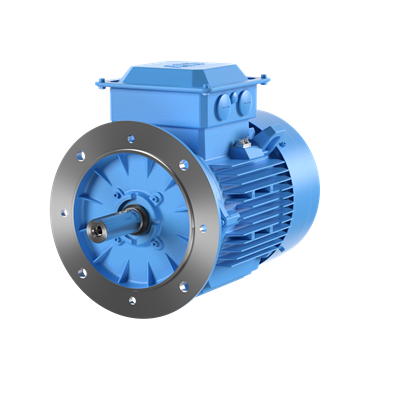

ABB IE3 CAST IRON MOTOR 2P 11kW 400VD BIG FLANGE MOUNT B5 IP66 M2BAX160MLA 3GBA161410-BDF
