Brand	ABB
Efficiency	IE3
Frame Size	90
Motor Designation	Process Performance - Aluminum Motor
Motor Poles	2
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Output Power (kW)	2.2
Rated Power (kW)	2.2
Voltage (V)	415Y/ 230D
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP55
Dimensions (mm)	400 X 223 X 280
Phases	3
Rated Voltage (V)	415Y/ 230D
Weight (kg)	21.1

Motors

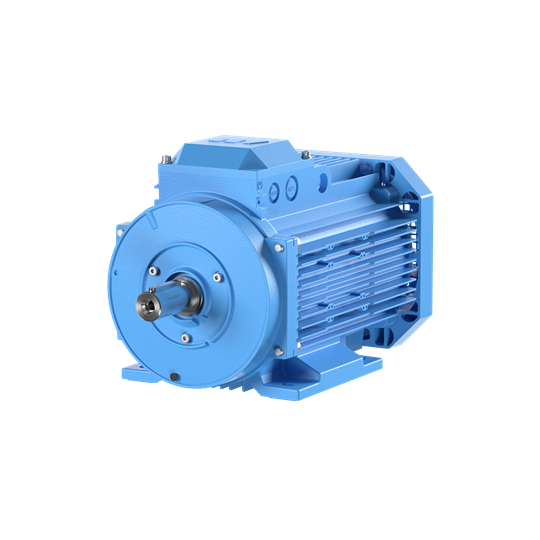

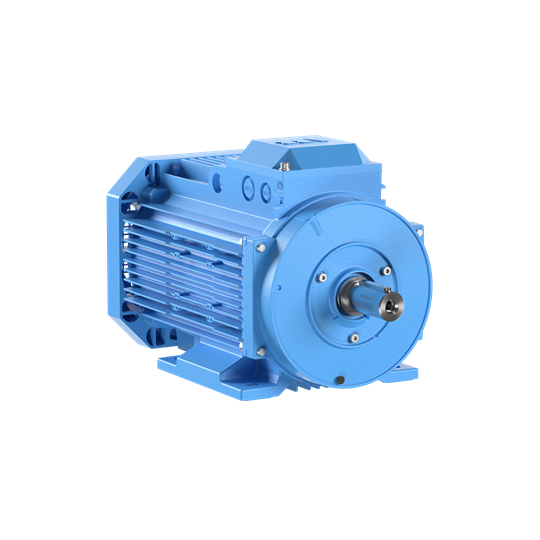

ABB IE3 ALUMINUM MOTOR 2P 2.2kW 400VY FOOT MOUNT B3 IP55 M3AA90LC 3GAA091530-ASK
