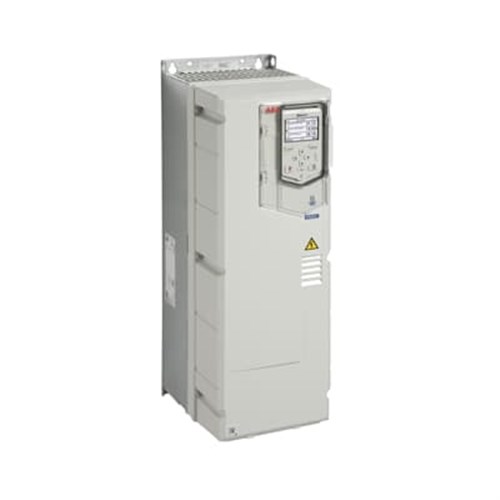

ACH580 HVAC drive includes key features for controlling fans, pumps, compressors, air-handling units, and chillers. Ensures smooth and energy-efficient operation for both normal and mission-critical HVAC systems. Built-in features reduce installation time. Intuitive control panel with HVAC-specific primary settings menu and help assistants. Simplifies startup, commissioning, and operation processes. Optional Bluetooth® capability for commissioning and monitoring from a distance. ACH580-01 available in IP21 enclosure for standard wall installation. IP55 and flange mounting options are also available.

Specifications

Brand	ABB
Product Type	HVAC
Country of Origin	Finland (FI)
Efficiency Level	IE2
Communication Protocols	BACNET CAN DeviceNet EtherNet/IP LON MODBUS Other Bus Systems PROFIBUS PROFINET IO TCP/IP
Frame Size	R4
Input Voltage (V)	380 … 480
Net Weight (kg)	23
No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	3
No. of Phases	3
Number of Hardware Interfaces	Industrial Ethernet 0 Other 2 Parallel 2 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 1
Output Current (A)	89
Rated Frequency (Hz)	47.5 ... 63
Height (mm)	636
Length (mm)	265
Width (mm)	203
Degree of Protection	IP55
Includes	Control unit PC connection
Output Power (kW)	45
