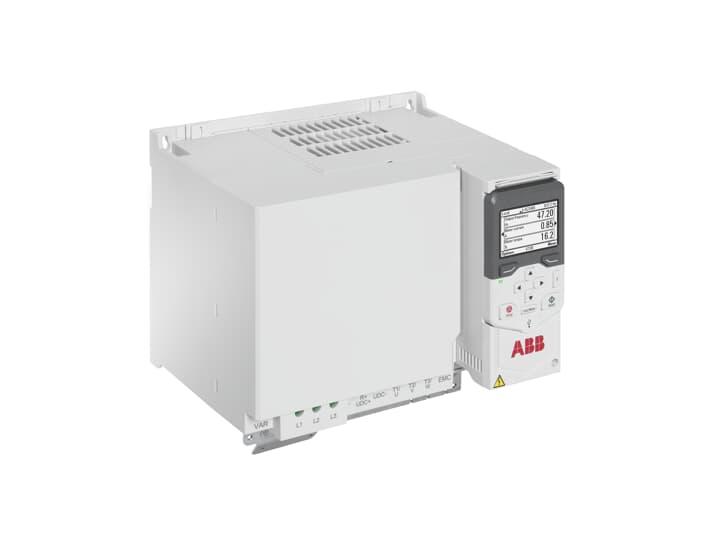

ABB ACS480 18.5KW 39A IP20 GENERAL DRIVE W/ CP ACS480-04-039A-4+J400

Product Code: 3AXD50000199075

The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture. It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It s a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.

Technical Specifications

Maximum Output Frequency (Hz) 500
Maximum Output Voltage AC (V) 480
No. of Analogue Inputs 2
No. of Analogue Outputs 2
No. of Digital Inputs 6
No. of Digital Outputs 3
Nominal Output Current (A) 38
Number of Other HW Interfaces 2
Number of RS-485 Interfaces 1
Number of USB Interfaces 1
Output Power - Normal Duty (kW) 18.5
Relative Symmetric Net Frequency Tolerance 5%
Relative Symmetric Net Voltage Tolerance 10%
Brand ABB
Communication Protocols TCP/IP PROFIBUS CAN MODBUS DeviceNet / DeviceNet Safety PROFINET IO EtherNet/IP Other Bus Systems
Application Industrial, Commercial & Domestic
Dimensions (mm) 262W x 240H x 213D
EAN 6438177508519
Input Voltage AC (V) 380 - 480
