Diaphragm Material	Ceramics Al2O3 99.9 %
Electrical Connection	PUR-cable (black, Ø 7.4 mm) [Shielded cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium / Electronic / Environment / Storage: -25 … 80 °C
Pressure (mH2O)	10
Product Series	LMK 809
Response Time (ms)	Mean response time: < 200 [Measuring rate: 5/sec] Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Accuracy	0.35 % FSO
Application	Sewage: Waste water treatment, water recycling, dumpsites. Aggressive Media: Level measurement in most of acids and lyes.
Cable Length (m)	22
Housing Material	PP-HT
Version	Standard

Level Sensors

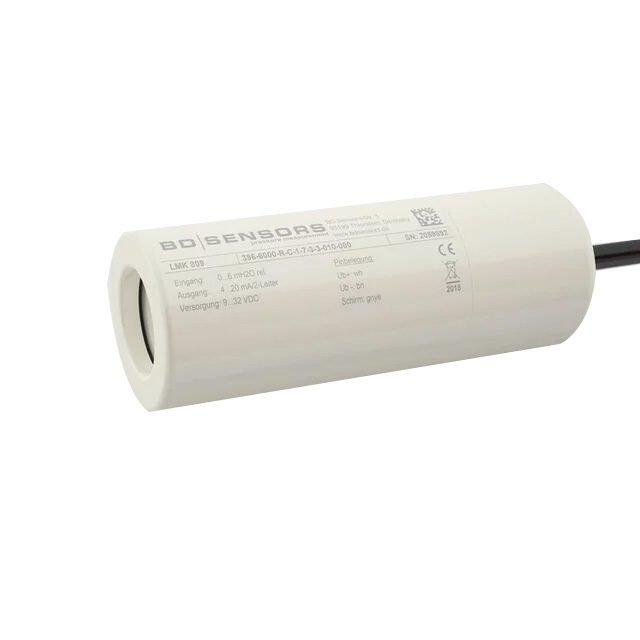

BD SENSOR LMK809 1.0 BAR PP-HT AL2O3 99.9% 4-20MA 2WIRE FFKM ACC. 0.35%FSO PUR-CAB BLCK 22M 3961001RC1132022000
