Rated Operational Current (A)	16
Brand	STAHL
Ambient Temperature Range (°C)	-50 to 45
Certifications	ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Taiwan (ITRI)
Colour	Blue
Connection Type	Screw Terminal
Degree of Protection	IP64/IP66
Dimensions (mm)	105W x 167H x 231L
Enclosure Material	Polyamide, Glass fibre reinforced
No. of Poles	2P + PE
Rated Frequency (Hz)	50/60
Rated Operational Voltage AC (V)	200-250
Series	SolConeX
Weight (kg)	1.12

Hazardous Area Plugs & Sockets

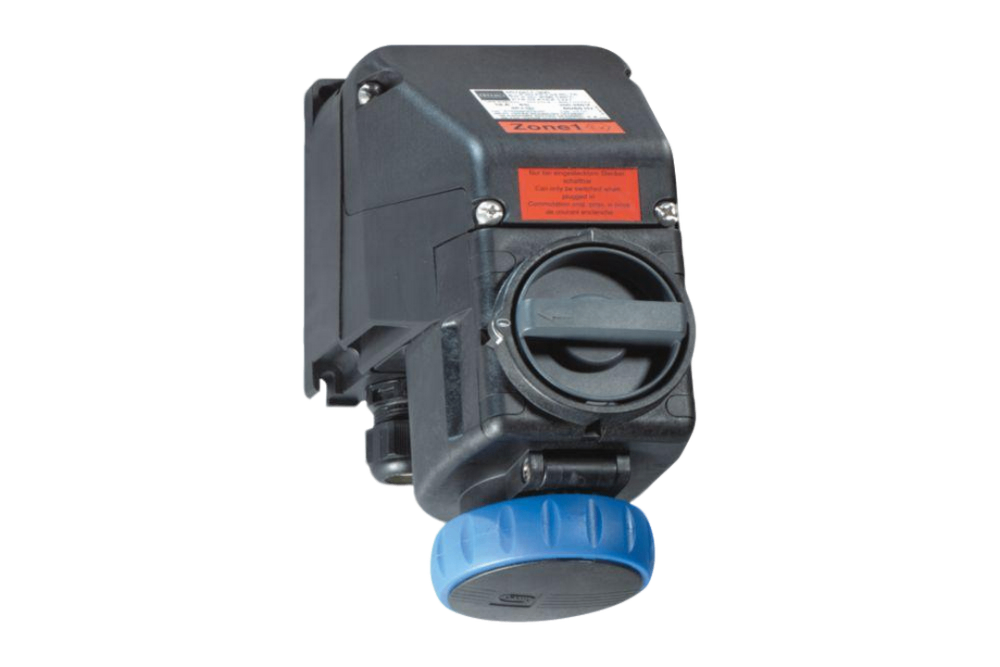

STAHL WALL MOUNTING SOCKET 16A 8570/11-306-S-01-0-00-XX 200-250VAC 273935
