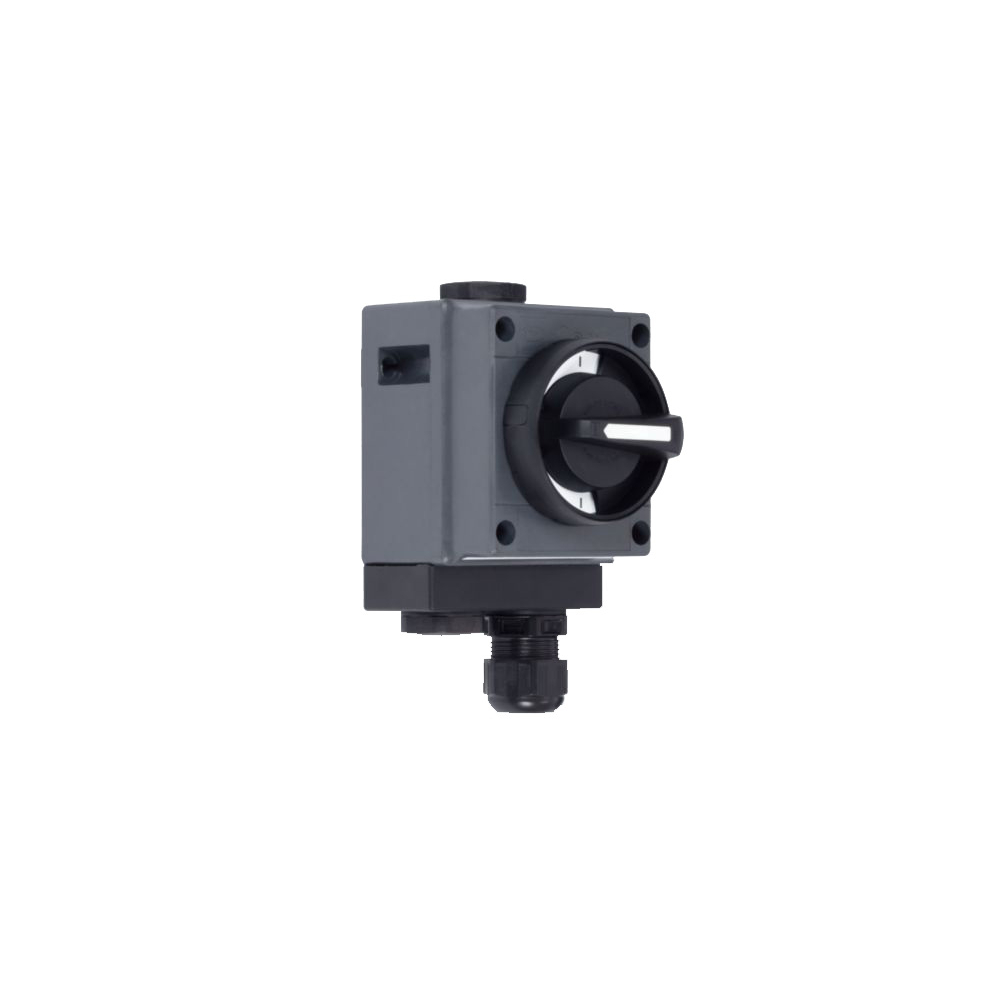

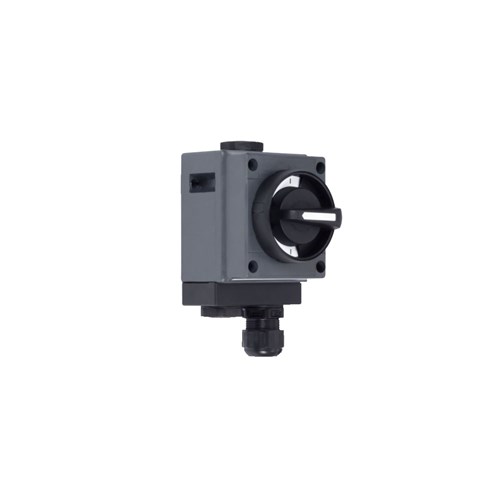

STAHL 8040/11-V30-035-B INSTALLATION SWITCH TWO-WAY CIRCUIT 245657

Product Code: 245657

Discover the robust Stahl two-way circuit installation switch, designed for hazardous areas with a focus on safety and durability. This control box features a dual-pole configuration and an NBR-sealed actuator, ensuring reliable operation in demanding environments. Rated for both 220 VDC and 690 VAC, it can handle a wide range of power requirements. With an operating temperature range from -20°C to +60°C and an IP66 rating, it's built to withstand harsh conditions while maintaining optimal performance. Trust in Stahl's commitment to quality for your critical control needs.

Technical Specifications

Enclosure Material Polyester, Glass fibre reinforced
Maximum Temperature (°C) 60
Minimum Temperature (°C) -20
Brand STAHL
Ambient Temperature Range (°C) -20 to +60
Cable Cross Section (mm²) 1.5 - 4
Application Application range (zones) - 1, 2, 21, 22
Contact Material Silver-Nickel
Maximum Continuous Voltage AC (V) 690
Maximum Continuous Voltage DC (V) 220
No. of Poles 2
Rated Operational Current (A) 16
Rated Operational Voltage AC (V) 690
Rated Operational Voltage DC (V) 220
Tightening Torque (Nm) 1.8
Degree of Protection IP66
Standards and Approvals ATEX/IECeX
Certifications European Union (ATEX), IECEx
