Hazardous Area Control Boxes

STAHL CABLE GLAND IP66 239198

Product Code: 239198

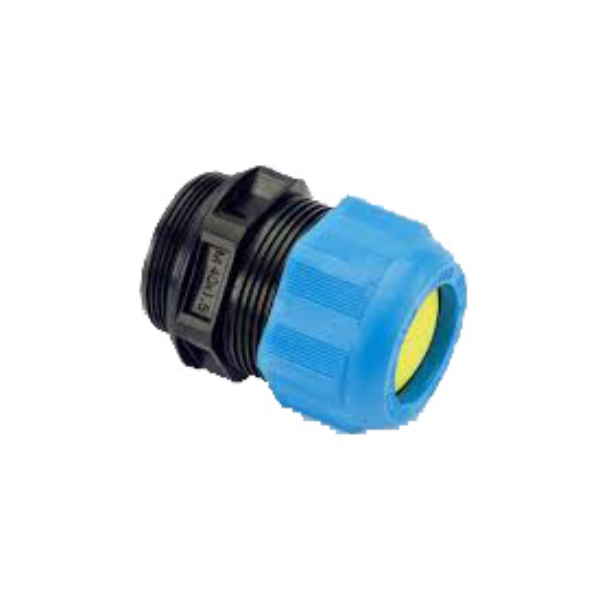

Cable Gland with Reduction Sealing Insert is a product designed for use in environments with a degree of protection of IP66. It can be used at heights below 2000 m and in temperatures ranging from -40 °C to +75 °C. The sealing material used for this product is EPDM profile seal. It has a clamping range of 9 to 21 mm, a total length of 45 to 53 mm, and a thread size of M32. The weight of the product is 0.032 kg.

Technical Specifications

Clamping Range (mm) 9 - 21
Brand STAHL
Ambient Temperature Range (°C) -40 to +75
Application Application range (zones) - 1, 2, 21, 22
Colour Black
Degree of Protection IP66, Note : IP68 at 5 bar 30 min. (IP protection according to IEC/EN 60529)
Material Polyamide
Thread Size M32
