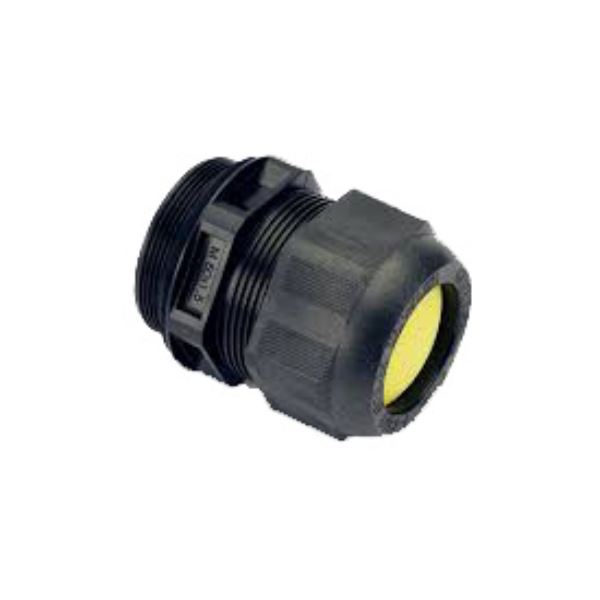

STAHL CABLE GLAND IP66 239175

Product Code: 239175

Cable Gland without Reduction Sealing Insert, offering IP66 protection. Suitable for use at heights below 2000 m and in temperatures ranging from -40°C to +75°C. Features an EPDM profile seal for effective sealing. Clamping range of 17 to 28 mm, total length between 52 to 65 mm, and thread size of M40. Weighs 0.068 kg.

Technical Specifications

Clamping Range (mm) 17 - 28
Brand STAHL
Ambient Temperature Range (°C) -40 to +75
Application Application range (zones) - 1, 2, 21, 22
Colour Black
Degree of Protection IP66, Note : IP68 at 5 bar 30 min. (IP protection according to IEC/EN 60529)
Material Polyamide
Thread Size M40
