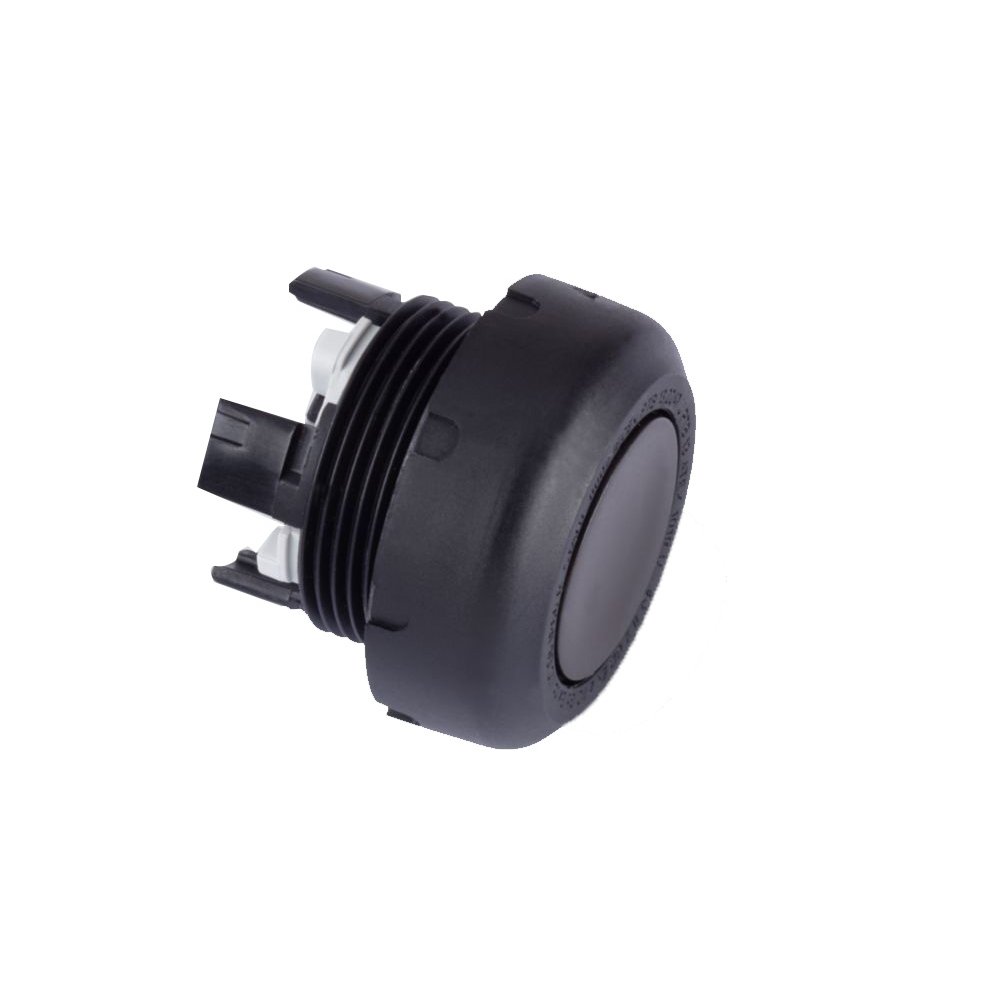

STAHL 8602C3-001-B PUSHBUTTON 223691

Product Code: 223691

Explore the Stahl Pushbutton designed for hazardous areas, a reliable Ex E component that ensures safety and functionality in demanding environments. This pushbutton features a diameter of 39 mm, a practical snap fit design for easy installation, and comes in a sleek black finish with a blank label for customization. It is silicone-free, confirming its suitability for use in sensitive applications. The unit is engineered to operate efficiently within a temperature range of -20°C to +60°C and boasts an IP66 rating, signifying robust protection against dust and high-pressure water jets. Part of the distinguished Assembly 001 series, this pushbutton stands as an essential tool for professionals seeking uncompromised performance in challenging conditions.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) -20
Brand STAHL
Ambient Temperature Range (°C) -20 to +60
Application Application range (zones) - 1, 2, 21, 22
Certifications IECEx, ATEX, UL
Colour Black
Degree of Protection IP66
Diameter (mm) 39
Enclosure Material Polyamide
Mounting Type Threaded
Standards and Approvals ATEX/IECeX
Tightening Torque (Nm) 3
