Product Code: 205686

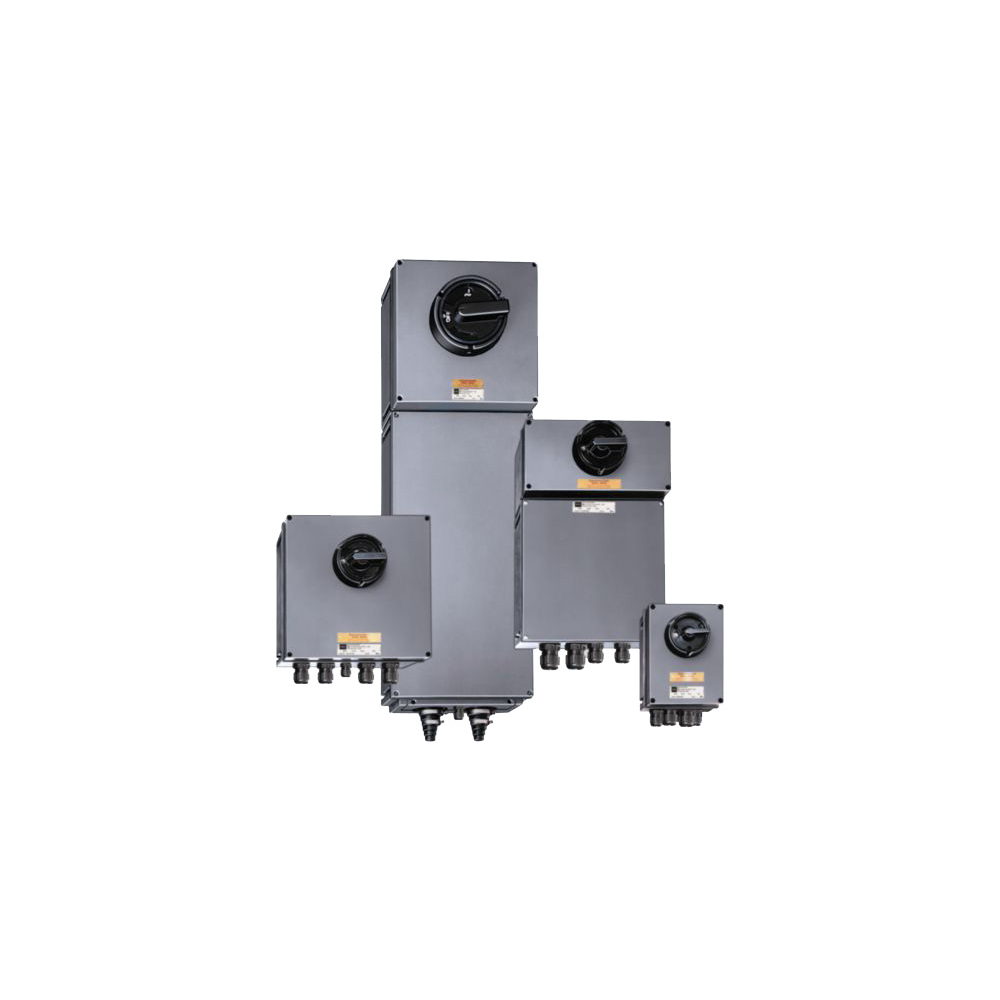

Ensure the safety and efficiency of your hazardous area operations with Stahl's 8146/5 Series Load Disconnect Switch. Designed for control systems and distribution boards, this robust 3-pole switch is rated for 40,000 A (T6) and offers reliable short-circuit protection up to 80 A with a gG fuse. It operates seamlessly in extreme temperatures ranging from -40°C to +51°C and boasts an IP66 rating, ensuring dust and water resistance. The durable polyester resin construction, coupled with a black handle and protective collar, provides both functionality and a professional aesthetic. Trust in Stahl's expertise for your critical power management needs in challenging environments.

Fuse Type	gG
Maximum Temperature (°C)	51
Minimum Temperature (°C)	-40
Nominal Output Current (A)	40
Rated Operational Current (A)	40
Brand	STAHL
Ambient Temperature Range (°C)	-40 to +48
Application	Application range (zones) - 1, 2, 21, 22
Certifications	European Union (ATEX), IECEx
Degree of Protection	IP66
Dimensions (mm)	176.5W x 340.5H x 170D
Enclosure Material	Polyester, Glass fibre reinforced
Handle Colour	Black shroud and handle
Mounting Type	Panel
No. of Poles	3
Rated Frequency (Hz)	50 - 60
Series	8146/5
Standards and Approvals	ATEX/IECeX

Hazardous Area Control Boxes

STAHL 8146/5-V11-305-00-0010-K LOAD DISCONNECT SWITCH 205686
