Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT7 Frame
Overload Release Current Setting (A)	500
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Tripping Unit	Ekip DIP LSI
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1250
Degree of Protection	IP20
EAN	8056221008860
I (1.5 to 15 x In) - I3 (A)	1875 - 18750
L (0.4 to 1 x In) - I1 (A)	500 - 1250
No. of Poles	3
Poles	3P
Power Loss (W)	57
Rated Current (A)	1250
Rated Uninterrupted Current - Iu (A)	1250
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	750 - 12500
Size of Frame	XT7
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

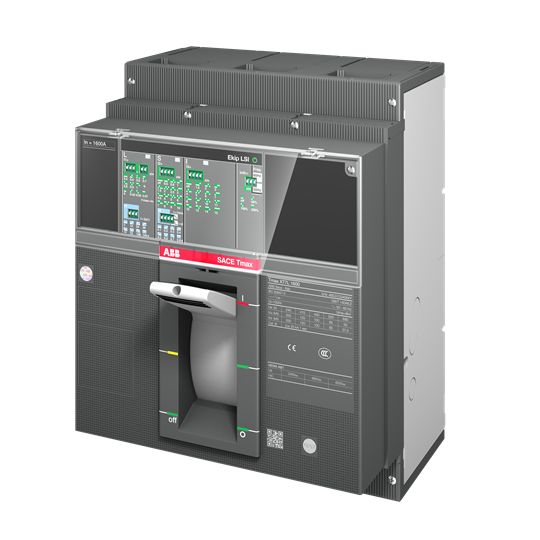

ABB XT7S 1250 EKIP DIP LSI IN=1250A 3P F F 1SDA100832R1
