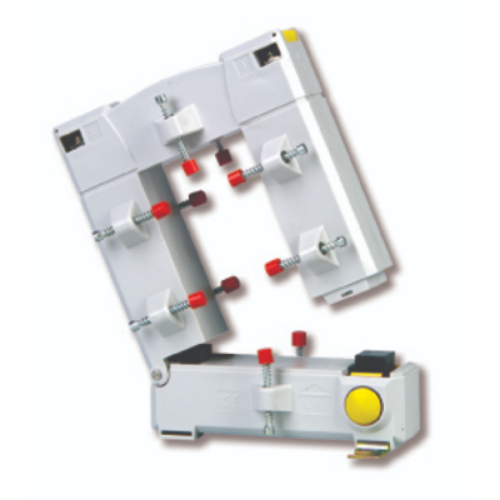

SOCOMEC SPLIT-CORE CT TO 58 250A/5A CLASS 1 2,5VA 192T4625

This split-core current transformer has a current ratio of 250/5 and an accuracy class of 1 at 1.5VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). The transformer comes with removable terminal covers as standard. The dimensions of the TO58 type are 158Hx125Wx58Dmm, with an opening size of 55x85mm. It can be easily mounted in various ways, including flat, DIN rail, or back plate using screw-on metal brackets or a clip-on DIN rail fastener.
