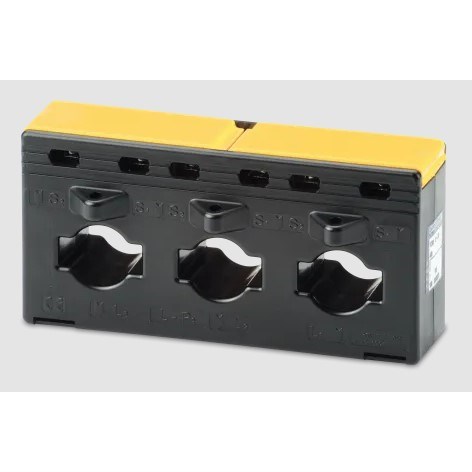

SOCOMEC BAR OR CABLE-THROUGH CT TCB3 22-30 3X600A/3X5A CLASS 1 5VA 192T3460

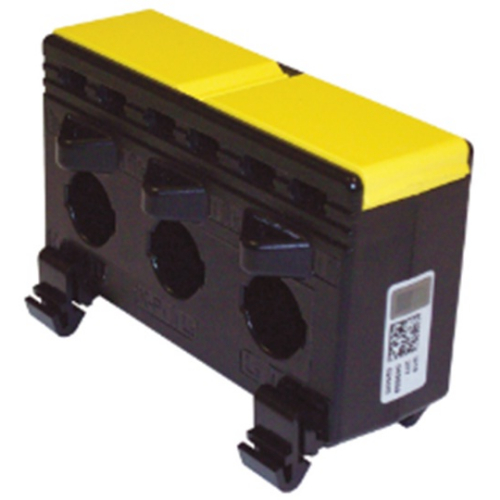

The 3 in 1 solid-core current transformer has a current ratio of 3x600/5 and an accuracy class of 1 at 5VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). This space-saving transformer is available in two frame sizes and comes with removable terminal covers as standard. The case material is made of polycarbonate. The dimensions of the transformer are 75Hx150Wx37Dmm with a cable diameter opening of 22mm. It can be easily adapted to any type of mounting, including flat, DIN rail, or back plate, using either two screw-on metal brackets or a clip-on DIN rail fastener (mounting clips included).
