SOCOMEC BAR OR CABLE-THROUGH CT TCB3 18-20 3X150A/3X5A CLASS 1 1,25VA 192T3315

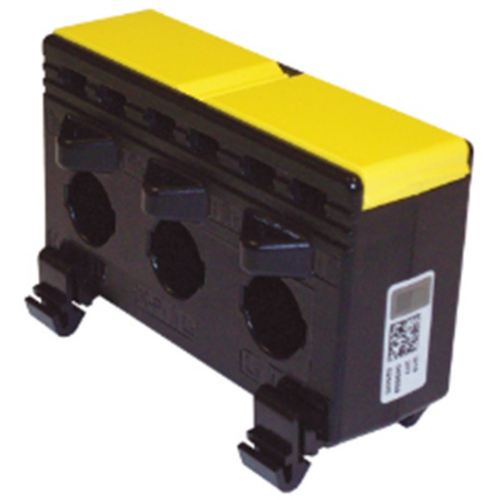

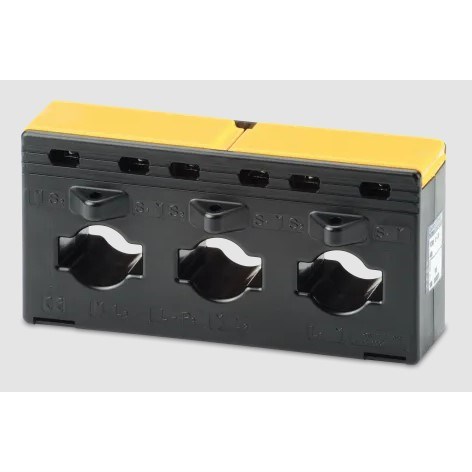

The 3 in 1 solid-core current transformer is designed for accuracy and efficiency. With a current ratio of 3x150/5 and an accuracy class of 1 at 1.25VA, it ensures precise measurements. The transformer has a dielectric quality of 3kV/1min at 50Hz and an insulation class E (120 °C), making it safe and reliable. This space-saving transformer is available in two frame sizes, providing flexibility for different applications. It comes equipped with removable terminal covers as standard, allowing for easy installation and maintenance. The case material is made of polycarbonate, ensuring durability and protection. The dimensions of the transformer are 65Hx115Wx37Dmm, with a cable diameter opening of 18mm. Versatility is a key feature of this transformer, as it can be adapted to any type of mounting: flat, DIN rail, or back plate. Two screw-on metal brackets or a clip-on DIN rail fastener (mounting clips included) can be used for secure installation. Overall, this current transformer offers high performance, convenience, and adaptability for various electrical applications.
