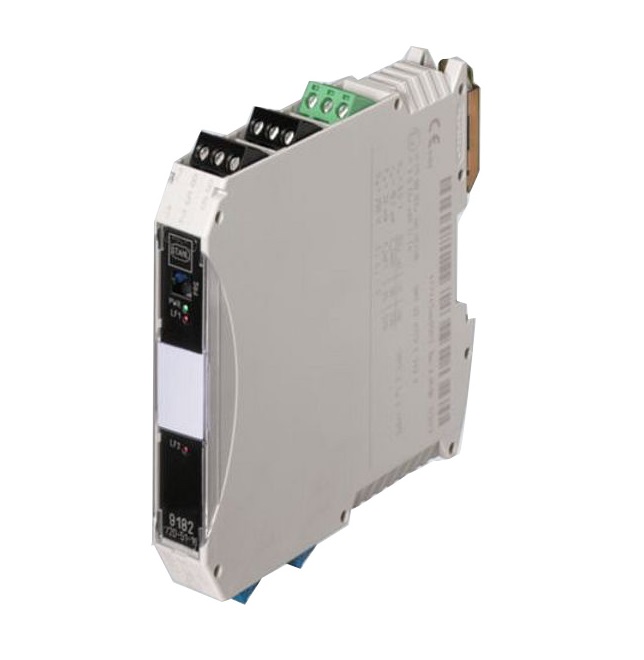

STAHL TEMPERATURE TRANSMITTER 2 CHANNELS 160541 - Hazardous Area Intrinsically Safe Isolators

Product Code: 160541

Maximum Power (mW)	32
Maximum Voltage (V)	6.5
No. of Channels	2
Nominal Voltage DC (V)	Auxiliary - 24
Rated Operational Current (A)	Auxiliary - 0.08
Brand	STAHL
Ambient Temperature Range (°C)	-20 to +70
Analogue Signal - Current (mA)	Output - 0/4 to 20
Application	Application range (zones) - 2
Cable Cross Section (mm²)	0.2 - 2.5
Certifications	IECEx, ATEX, cFmus, cFM
Connection Type	Screw Terminal
Degree of Protection	IP30, Terminals - IP20
Dimensions (mm)	17.6W x 114.5H x 108D
Enclosure Material	Polyamide
LED Colour	Green - "PWR", Red - "LF"
Maximum Current (A)	0.0197
Mounting Type	DIN Rail
Power Consumption (W)	Auxiliary - 1.9
