Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Pedal Material	Glass-fibre, Reinforced Thermoplastic
Protective Shield Material	Aluminium
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	1
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Switching Element	NO Contact, NC Contact
Switching Principle	Slow Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	10
Utilisation Category	DC-13
Brand	SCHMERSAL
Degree of Protection	IP65
Depth (mm)	274
EAN	4030660000000
Enclosure Coating Material	Powder-coated
Height (mm)	189
Housing Colour	RAL 9006 (White aluminium)
Housing Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1 x 2.5
Minimum Mechanical Life	1000000 Operations
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	1
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Standards	EN ISO 13849-1
Standards and Approvals	EN IEC 60947-5-1
Width (mm)	170

Safety Pushbuttons & Operator Devices

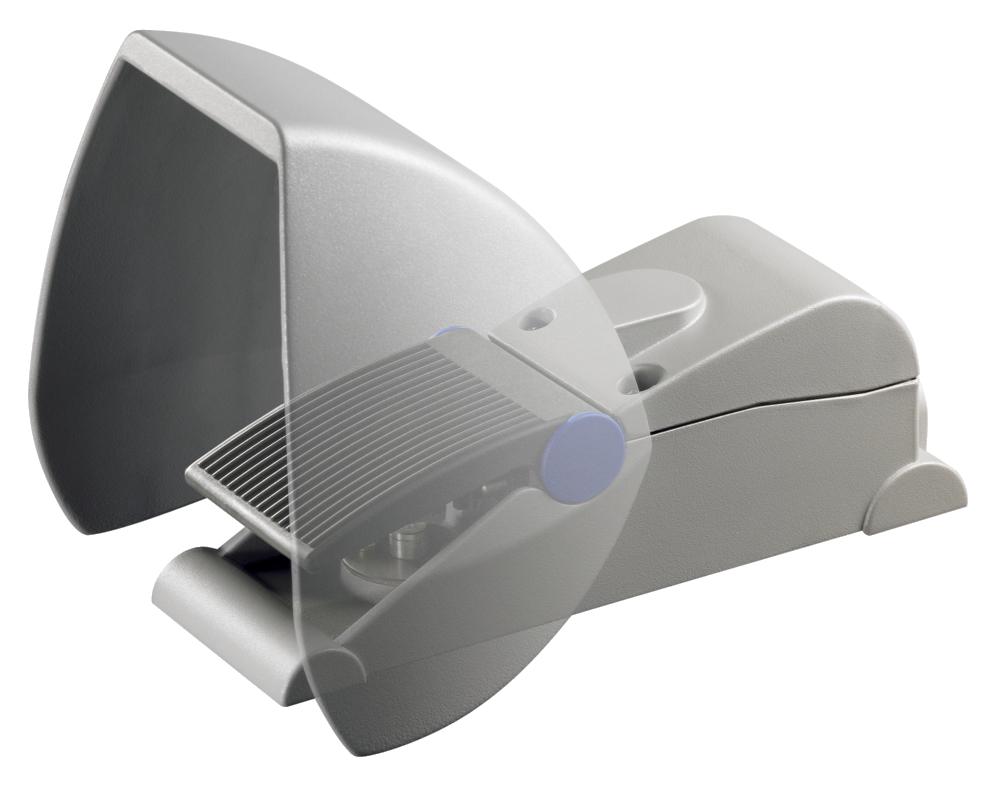

SCHMERSAL SINGLE PEDAL TYPE FOOT SWITCH 151181529
