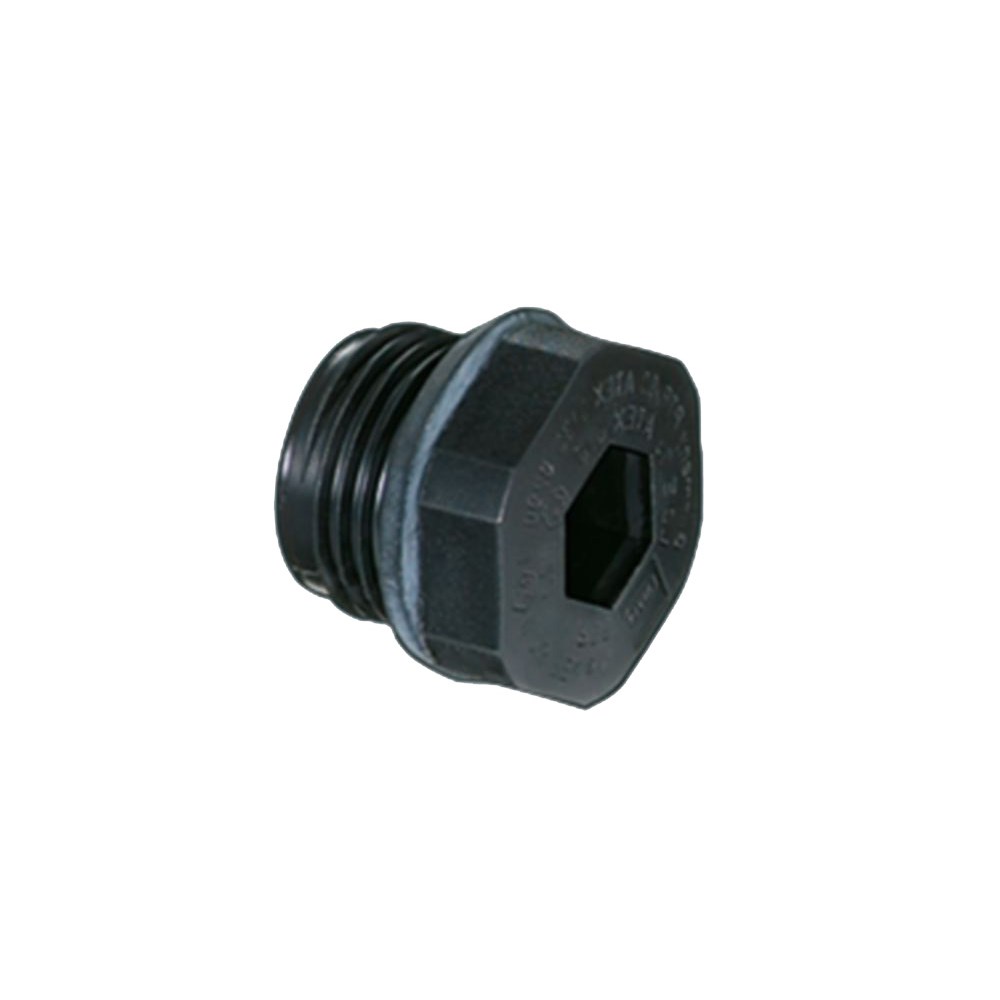

STAHL 8290/3-M20 STOPPING PLUG 143522

Product Code: 143522

Ensure the safety and integrity of your hazardous area cabling with the Stahl 8290/3 Series Stopping Plug. Designed with a robust M20x1.5 thread size, this plug can withstand extreme temperatures ranging from -60°C to +80°C. Crafted from durable polyamide, it offers flame-resistant and self-extinguishing properties to maintain high safety standards. The black stopping plug is rated IP66, ensuring protection against dust and high-pressure water jets. Ideal for engineers seeking reliable components in challenging environments, the Stahl stopping plug is an essential addition to any hazardous area cabling system.

Technical Specifications

Drive Hexagon Socket
Maximum Temperature (°C) 80
Minimum Temperature (°C) -60
Brand STAHL
Ambient Temperature Range (°C) -60 to +80
Application Application range (zones) - 1, 2, 21, 22
Certifications IECEx, ATEX, UL
Colour Black
Degree of Protection IP66
Material Polyamide
Series 8290/3
Standards and Approvals ATEX/IECeX
Thread Size M20
