Product Code: 132644

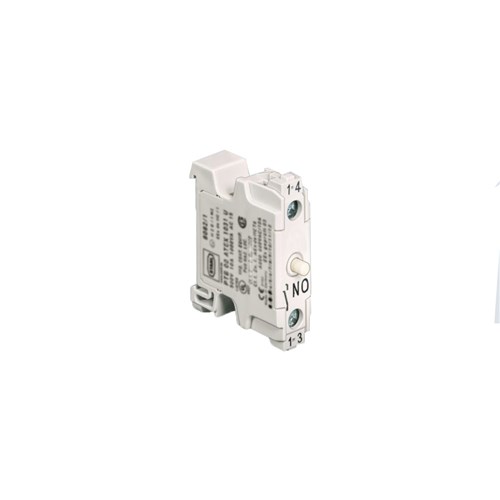

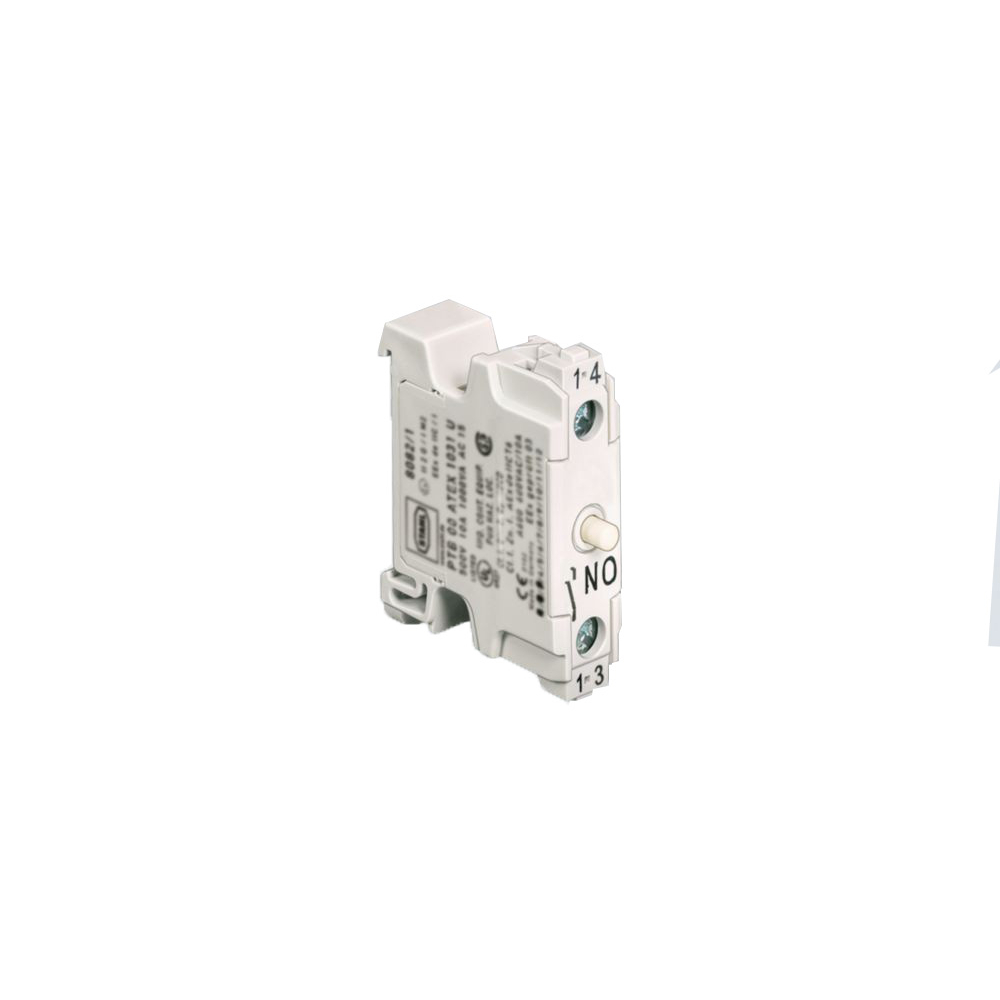

Optimize your hazardous area installations with the Stahl Series 8082 contact element, designed for mounting rail applications. This robust component features a normally open (NO) configuration with high-conductivity gold-plated contacts, ensuring reliable operation. It is rated for voltages ranging from 24 to 550 VAC and can handle up to 10 A of current. Built to withstand extreme temperatures from -60°C to +100°C and carrying an IP20 rating, this Ex E Component is ideal for demanding environments requiring precise performance.

Maximum Continuous Voltage AC (V)	550
Maximum Temperature (°C)	100
Minimum Temperature (°C)	-60
Rated Operational Current (A)	0.01 - 0.15
Switching Capacity AC-12	250V/10A, 400V/7.5A, 550V/5A
Switching Capacity AC-15	110V/10A, 250V/6A, 400V/4A
Switching Capacity DC-13	60V/6A
Switching Capacity DC-132	230V/1A, 110V/2.5A
Brand	STAHL
Ambient Temperature Range (°C)	-60 to +70
Application	Application range (zones) - 1, 2
Cable Cross Section (mm²)	0.75 - 2.5
Certifications	IECEx, ATEX, UL
Connection Type	Screw Terminal
Contact Material	Gold-plated
Contacts	1NO
Degree of Protection	IP20
Enclosure Material	Polyamide
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-60 to +100
Rated Operational Voltage (V)	24 - 550
Series	8082
Standards and Approvals	ATEX/IECeX
Tightening Torque (Nm)	1.2

Hazardous Area Control Boxes

STAHL 8082/1-2-10 CONTACT ELEMENT 132644

Product Code: 132644
