Product Code: 103006593

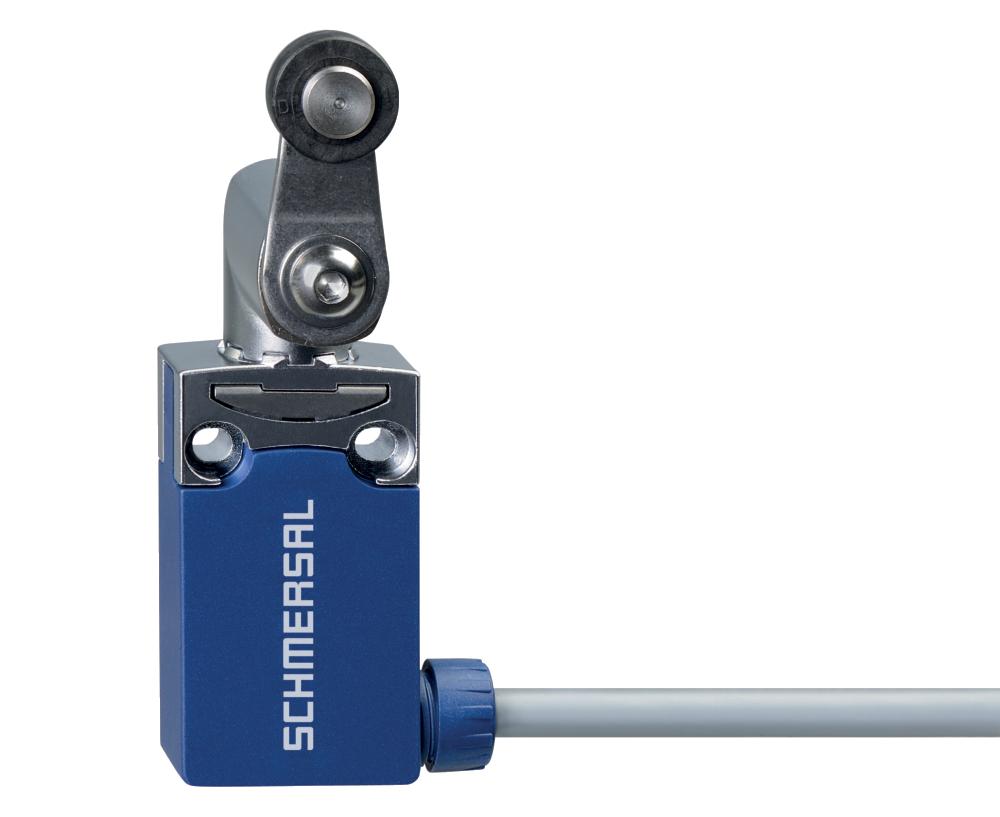

The Schmersal PS116 series position switch is engineered for machine safety with a robust thermoplastic enclosure and a roller lever H200 actuating element. This switch features both NO and NC contacts with snap action, ensuring reliable operation. It includes one auxiliary contact and two safety contacts, supporting a thermal test current of 5 A. Optimized for various applications, it has an AC-15 utilization category rated at 240 VAC, 3 A, and a DC-13 utilization category rated at 24 VDC, 1.5 A. The PS116 is designed to meet the stringent demands of industrial environments where precision and durability are key.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC002593
ETIM 7.0	EC000030
Gross Weight (g)	65
Maximum Temperature (°C)	80
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-30
Net Weight (g)	70.25
Sensor Length (mm)	16.6
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	60
Minimum Mechanical Life	1000000 Operations
Series	PS116
Standards	EN ISO 13849-1
Terminal Type	IDC method of termination

Position Switches & Sensors

SCHMERSAL PS116-Z12-LR200-H200 POSITION SWITCH 103006593

Product Code: 103006593
