Product Code: 103004063

Enhance your machine safety with the Schmersal SLG Series Safety Light Grids, designed for reliable protection and monitoring. This compact system features a trio of beams and dual fail-safe digital outputs, ensuring robust safety measures are in place. With an 800 mm detection range and equal height for the protection field, it's ideal for various applications. The unit operates on a 24 VDC power supply and maintains efficiency with a low electrical power consumption of just 10 W. Integration is made easy thanks to its convenient connector terminal. Trust in Schmersal's commitment to safety with this essential component in any risk management strategy.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-06-09
ETIM 6.0	EC000030
ETIM 7.0	EC002592
Gross Weight (g)	380
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-10
Net Weight (g)	233.9
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	24
Sensor Height (mm)	30
Sensor Length (mm)	33
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Minimum Mechanical Life	1000000 Operations
Series	SLG
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / EN IEC 61508 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN IEC 60947-5-5 / EN IEC 60947-1
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

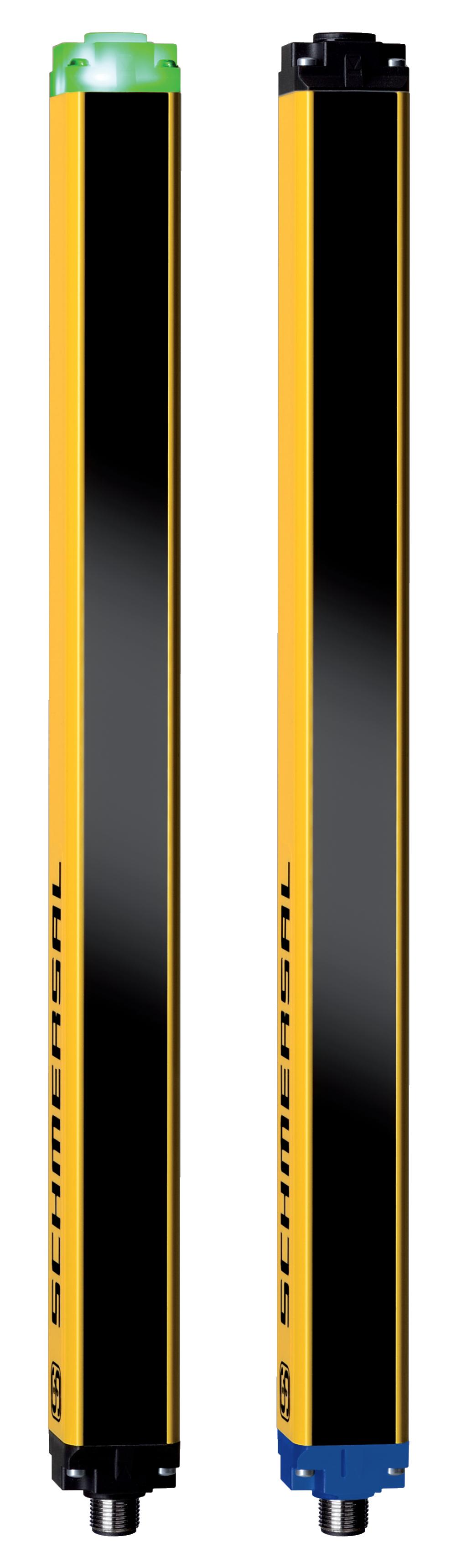

SCHMERSAL SLG440COM-ER-0800-03 SAFETY LIGHT GRID 103004063

Product Code: 103004063
