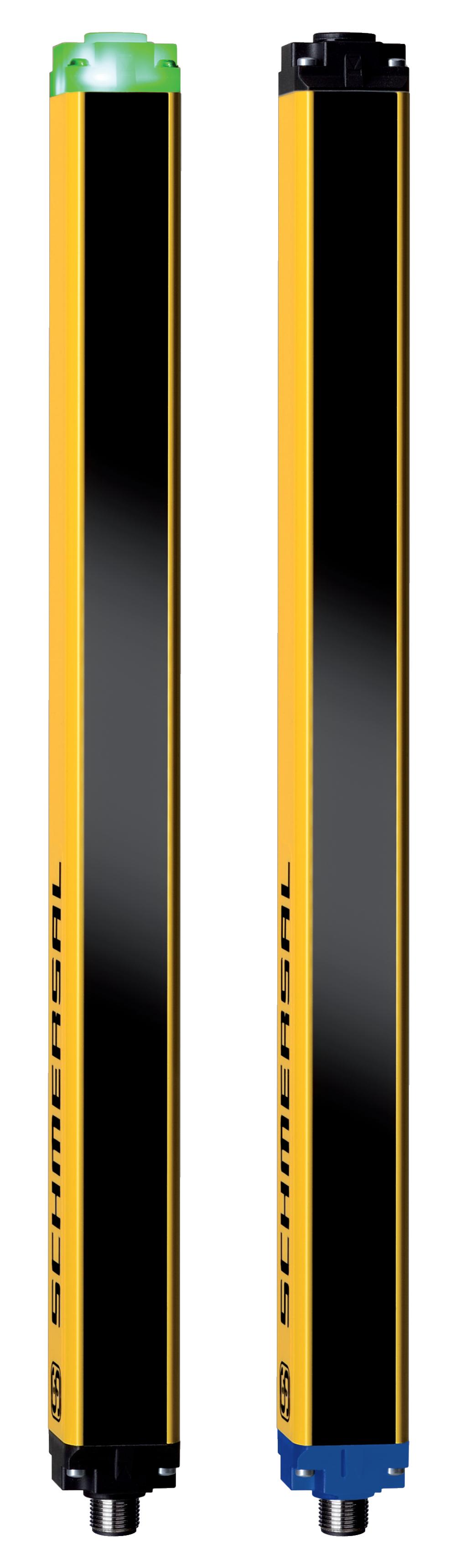

SCHMERSAL SLC440COM-ER-1050-30 SAFETY LIGHT CURTAIN 103003949

Product Code: 103003949

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliable protection, this system features 52 beams and a detection ability of 30 mm, ensuring precise object recognition. The safety mechanism is complemented by an integral system diagnostics and a restart interlock for added security. With a protective field height of 1050 mm and two fail-safe digital outputs, it integrates seamlessly into your safety circuit. This robust unit operates on 24 VDC with a minimal power consumption of just 10 W. The convenient terminal connector simplifies installation, making the Schmersal SLC series an essential component for any safety-conscious engineering operation.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-06-09
eCl@ss Number, Version 9.0 27-27-06-90
ETIM 6.0 EC002591
ETIM 7.0 EC000030
Gross Weight (g) 840
Maximum Temperature (°C) 50
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -10
Net Weight (g) 2940
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Sensor Height (mm) 30
Sensor Length (mm) 33
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 90
Minimum Mechanical Life 10000000 Operations
Series SLC
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type Screw terminals M20 x 1.5
