Product Code: 103003947

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for high-risk industrial environments, this robust safety solution features 44 beams and a protection field height of 890 mm, ensuring comprehensive coverage. With a detection ability of 30 mm, it can identify even small objects, minimizing the risk of accidents. The system includes restart interlock and integral system diagnostics for reliable operation. It comes equipped with two fail-safe digital outputs and utilizes a convenient connector terminal for easy integration. Operating on a 24 VDC power supply and with an economical electrical power consumption of just 10 W, this safety light curtain is both efficient and effective in safeguarding personnel around machinery.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-02
eCl@ss Number, Version 9.0	27-27-06-90
ETIM 6.0	EC002591
ETIM 7.0	EC002592
Gross Weight (g)	2740
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-10
Net Weight (g)	2840
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	24
Sensor Height (mm)	30
Sensor Length (mm)	33
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	90
Minimum Mechanical Life	10000000 Operations
Series	SLC
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / EN ISO 14119
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

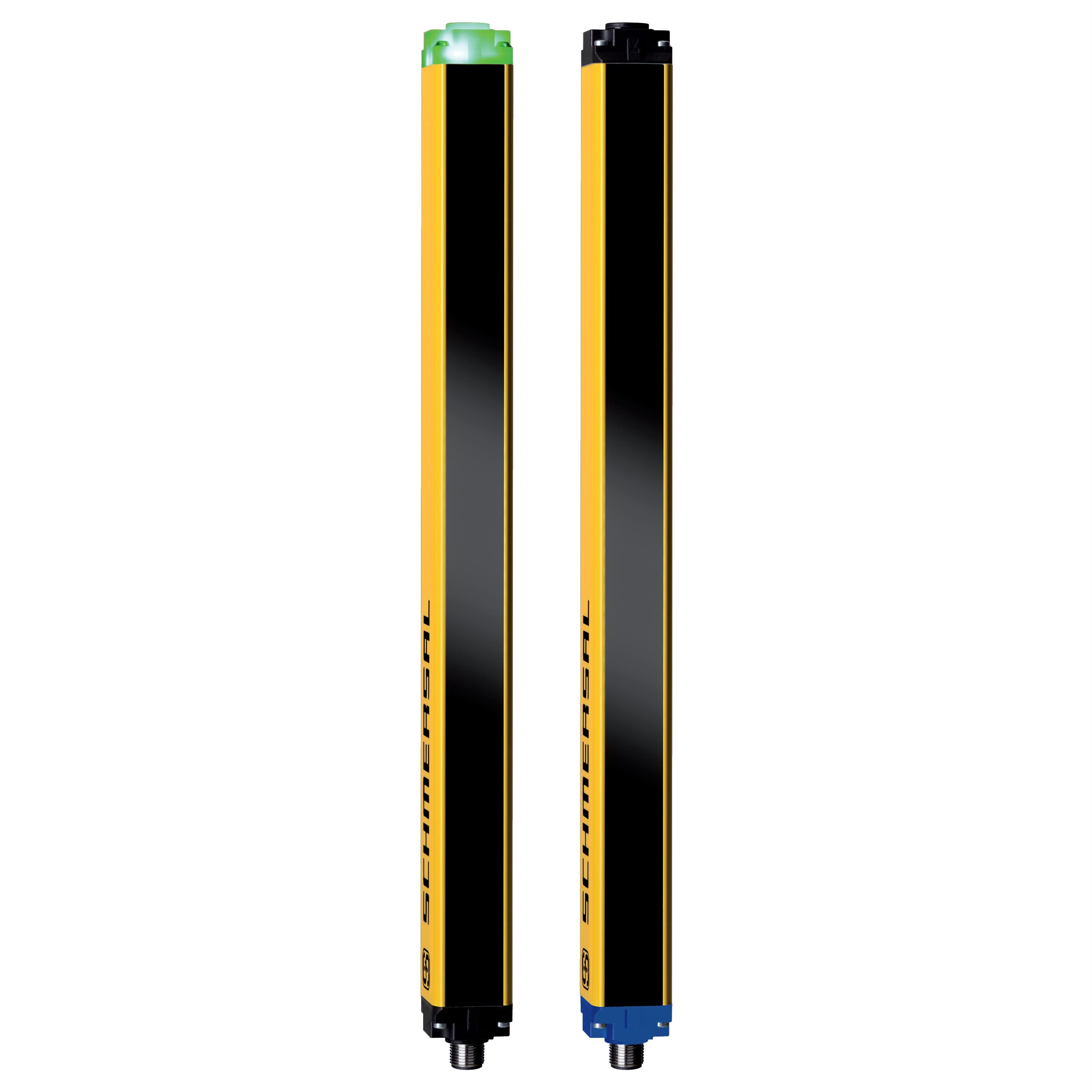

SCHMERSAL SLC440COM-ER-0890-30 SAFETY LIGHT CURTAIN 103003947

Product Code: 103003947
