Actuating Element	Magnet
Direction of Motion	Head-on to the Active Surface
Installation Conditions	Quasi-flush
Maximum Storage Temperature (°C)	70
Maximum Switching Capacity (W)	10
Maximum Switching Frequency (Hz)	5
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
No. of Safety Contacts	2
Recommended Actuator	BPS 36-2
Recommended Safety Switchgear	SRB-E-301ST
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Sensor Height (mm)	25
Sensor Length (mm)	13
Sensor Width (mm)	88
Termination	Connector M8, 4-Pole, Latching Interlocking
Brand	SCHMERSAL
Degree of Protection	IP67
Housing Material	Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)	70
Maximum Switching Current (A)	0.4
No. of Normally-closed Contacts	2
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1

Presence Sensing Safety Devices

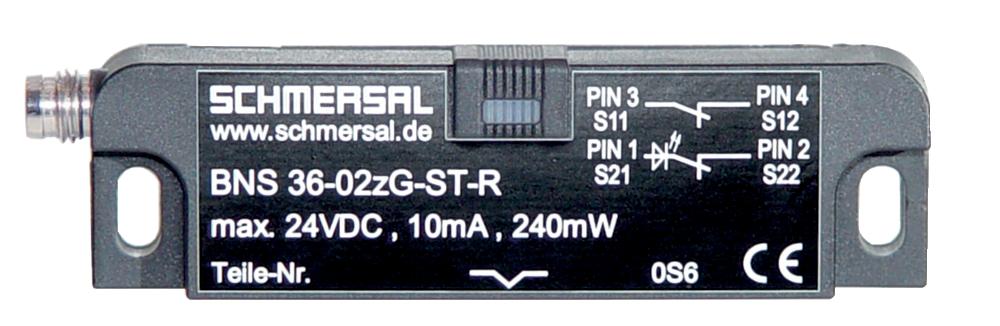

SCHMERSAL BNS 36-02Z-ST-R-2750MAGNETIC SAFETY SENSOR 101217373
