Product Code: 101216617

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features a 330 mm high protection field with 32 beams capable of detecting objects as small as 14 mm. The integrated contactor control, restart interlock, and beam coding ensure versatile and secure operation. Monitor performance effortlessly with the 7-segment display and integral system diagnostics, while Bluetooth connectivity offers convenient wireless interfacing. With two fail-safe digital outputs and a standard connector terminal, installation is straightforward. Operating on a modest 24 VDC power supply and consuming just 10 W, this safety solution is both efficient and effective for safeguarding your equipment.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	340
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	310
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	24
Sensor Height (mm)	65
Sensor Length (mm)	144
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	60
Minimum Mechanical Life	100000 Operations
Series	SLC
Standards	EN IEC 60947-5-1
Terminal Type	Screw terminals

Presence Sensing Safety Devices

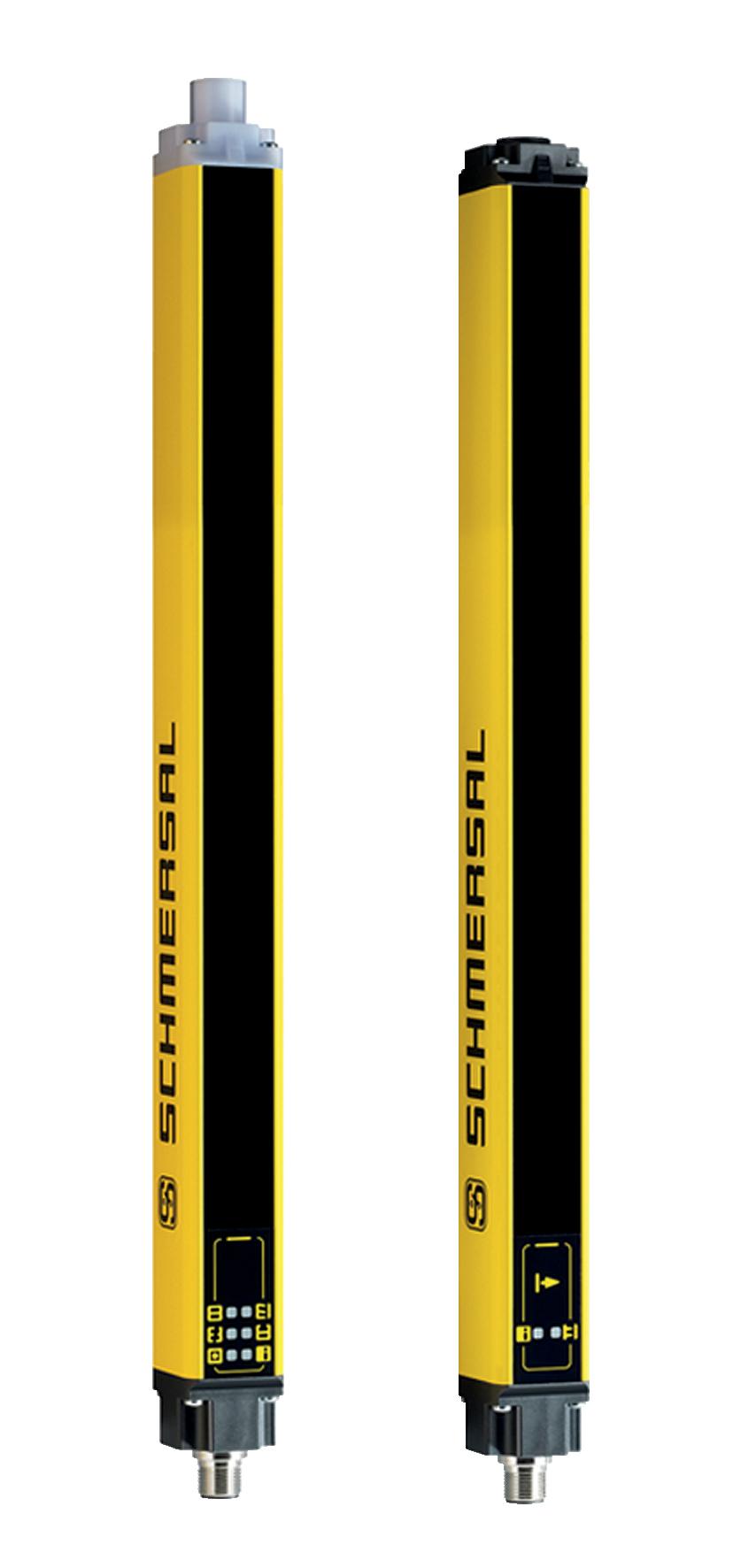

SCHMERSAL SLC440-ER-0330-14-01 SAFETY LIGHT CURTAIN 101216617
