Product Code: 101208371

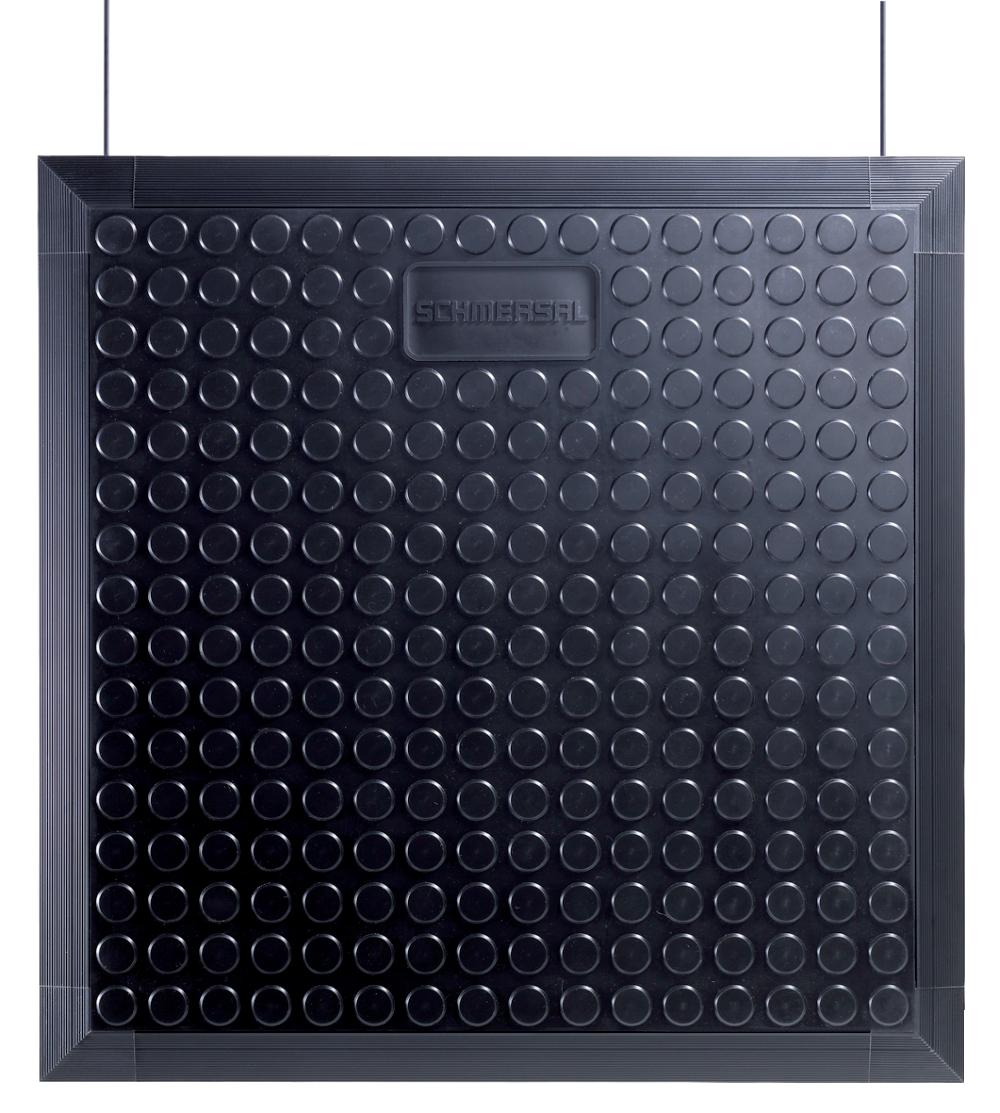

Enhance machine safety with the Schmersal SMS5 Series Safety-related tactile sensor. This robustly designed sensor ensures secure operation with its slip-free surface and simple mounting process that eliminates the need for an additional baseplate. Its moulded ramp profile complements the straightforward design, allowing for seamless integration into your safety system. The sensor is also cascadable, offering flexibility in system expansion. Measuring 500 x 250 x 14 mm, it comes equipped with a 6-meter cable terminal connector for easy installation. Trust in Schmersal's commitment to reliable machine safety solutions with this essential component from their SMS5 series.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC001029
ETIM 7.0	EC000030
Gross Weight (g)	500
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-10
Minimum Temperature (°C)	0
Net Weight (g)	442
Sensor Height (mm)	90
Sensor Length (mm)	30
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC
Contact Material	Ag-Ni 10 and 0.2µm gold-plated
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Minimum Mechanical Life	100000 Operations
Series	SMS5
Standards	EN IEC 60947-5-1
Terminal Type	Cable

Presence Sensing Safety Devices

SCHMERSAL SMS5-250-500 SAFETY-RELATED TACTILE SENSOR 101208371
