Product Code: 101207730

Enhance your machine safety with the Schmersal KA Series Safety Light Curtains, featuring a robust pre-wired cable designed for easy installation. This reliable component boasts 8 poles and an equal number of cable wires, ensuring consistent performance. The screw connection terminal connector provides a secure fit, while the generous 20-meter length offers ample reach for various setups. Operating at a safe voltage of 30V and with a contact load capacity of 2, this product is an essential addition to any safety-conscious engineering project.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-12
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	199.72
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	90/80
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-30/-40
Net Weight (g)	75
Rated Maximum Operational Voltage DC (V)	30
Sensor Height (mm)	192
Sensor Length (mm)	103
Switching Element	Normally open contact (NO)
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light-alloy diecast, paint finish
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	30000000 Operations
No. of Poles	8
Series	KA
Standards	EN IEC 60947-5-1
Terminal Type	Cable

Presence Sensing Safety Devices

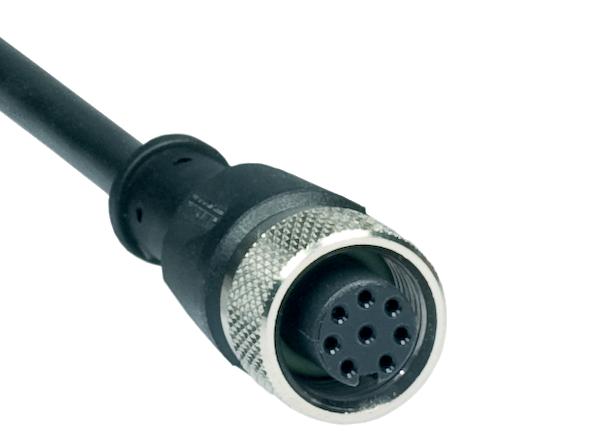

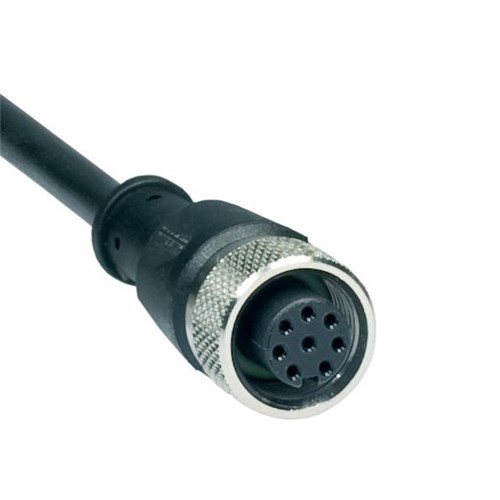

SCHMERSAL KA-0908 CONNECTOR 101207730
