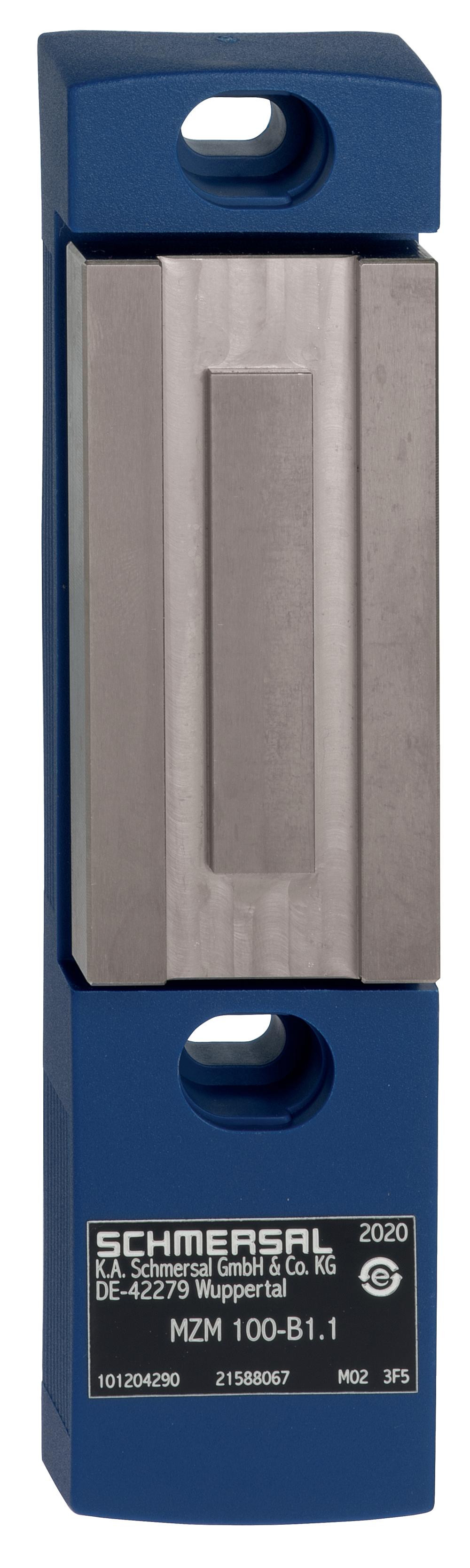

SCHMERSAL MZM100-B1.1 SOLENOID INTERLOCK 101204290

Product Code: 101204290

Discover the Schmersal MZM100 series solenoid interlocks, engineered for machine safety with precision. This actuator is designed to be free from play, ensuring reliable operation in critical safety applications. With a straight actuator profile and compact dimensions of 24x40x160 mm, it fits seamlessly into various machine configurations. Trust in the Schmersal brand for robust safety solutions that meet your industrial requirements.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-06-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Explosion Protection Category 3D | 3G
Gross Weight (g) 270
Maximum Fuse Rating 16 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Net Weight (g) 270
Sensor Height (mm) 145
Sensor Length (mm) 64
Switching Element Opener (NC)
Switching Principle Slow action
Thermal Test Current (A) 0.25
Utilisation Category AC-15 240 VAC
Utilisation Category DC-13 200 VDC
Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Light alloy die-casting
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Mechanical Life 20000000 Operations
Rated Insulation Voltage (V) 500
Series MZM100
Standards EN IEC 60947-5-1
Terminal Type Screw terminals M20 x 1.5
