Product Code: 101192476

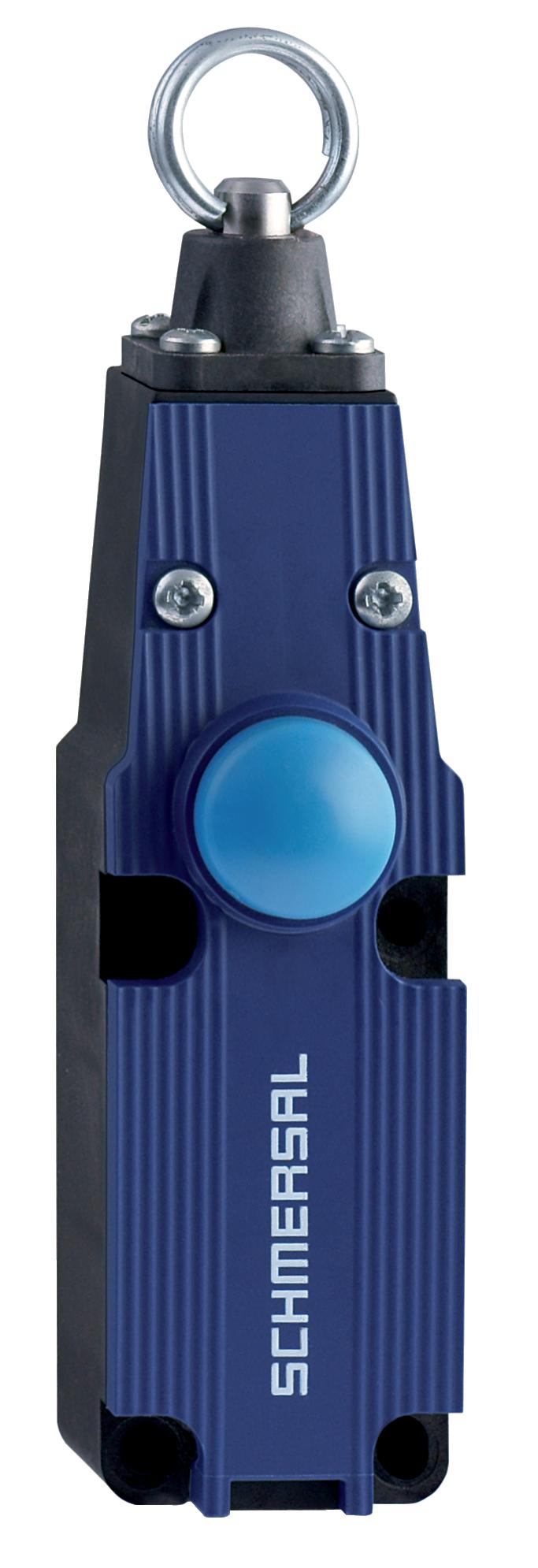

Ensure machine safety with the Schmersal ZQ Series Pull-wire Emergency Stop Switch. This robust device features a durable thermoplastic enclosure and is equipped with both NO and NC snap action switching elements. It includes one auxiliary contact and one safety contact, with a reliable screw connection terminal for secure wiring. Rated for a thermal test current of 10 A, it operates efficiently at 230 VAC under AC-15 utilization category with a 4 A rating, and at 24 VDC under DC-13 utilization category also with a 4 A rating. Designed for quick emergency shutdowns, this pull-wire E-stop is an essential component in safeguarding operational personnel and equipment.

eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC002371
Gross Weight (g)	78
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-25
Minimum Temperature (°C)	-25
Net Weight (g)	73.81
No. of Safety Contacts	2
Sensor Height (mm)	85
Sensor Length (mm)	13
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	30000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	ZQ
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals
