Product Code: 101189905

Enhance your machine safety with the Schmersal BNS36 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features a magnetic actuating element and is suitable for right-hinged doors. It boasts two safety contacts and a latching interlocking 8 mm 6-pole terminal connector, ensuring secure connections. With a switching voltage of 75 VDC, current of 0.4 A, and capacity of 10 W, this sensor ensures efficient operation. The BNS36 series is an ideal choice for engineers seeking robust safety solutions in their machinery setups.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-06
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC002594
ETIM 7.0	EC001487
Gross Weight (g)	145.38
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	86.49
No. of Safety Contacts	4
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	75
Sensor Height (mm)	204
Sensor Length (mm)	31
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	AC-15
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Contact Material	AgSn0, self-cleaning, positive drive
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	30000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	50
Series	BNS36
Standards	EN IEC 60947-5-1
Terminal Type	Screw connection, plug-in \| rigid or flexible

Presence Sensing Safety Devices

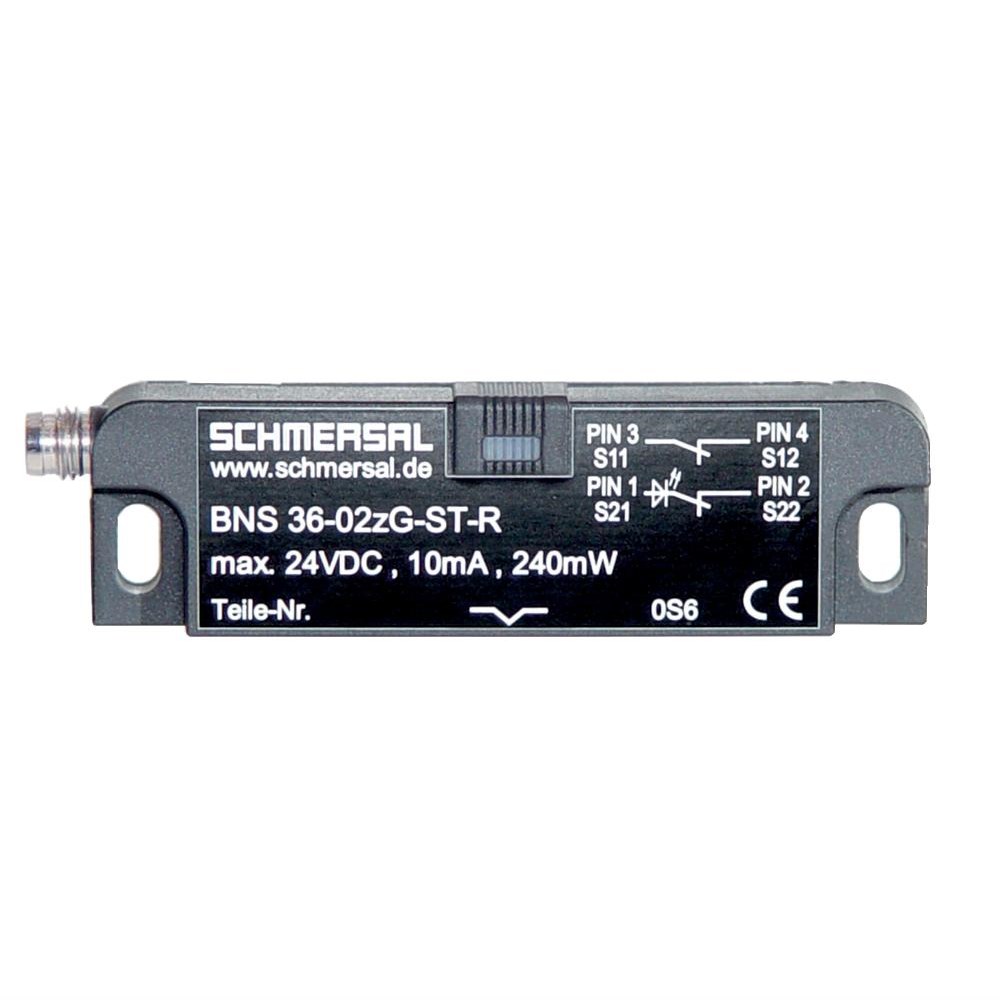

SCHMERSAL BNS36-02Z-ST-R SAFETY SENSOR 101189905
