Product Code: 101184416

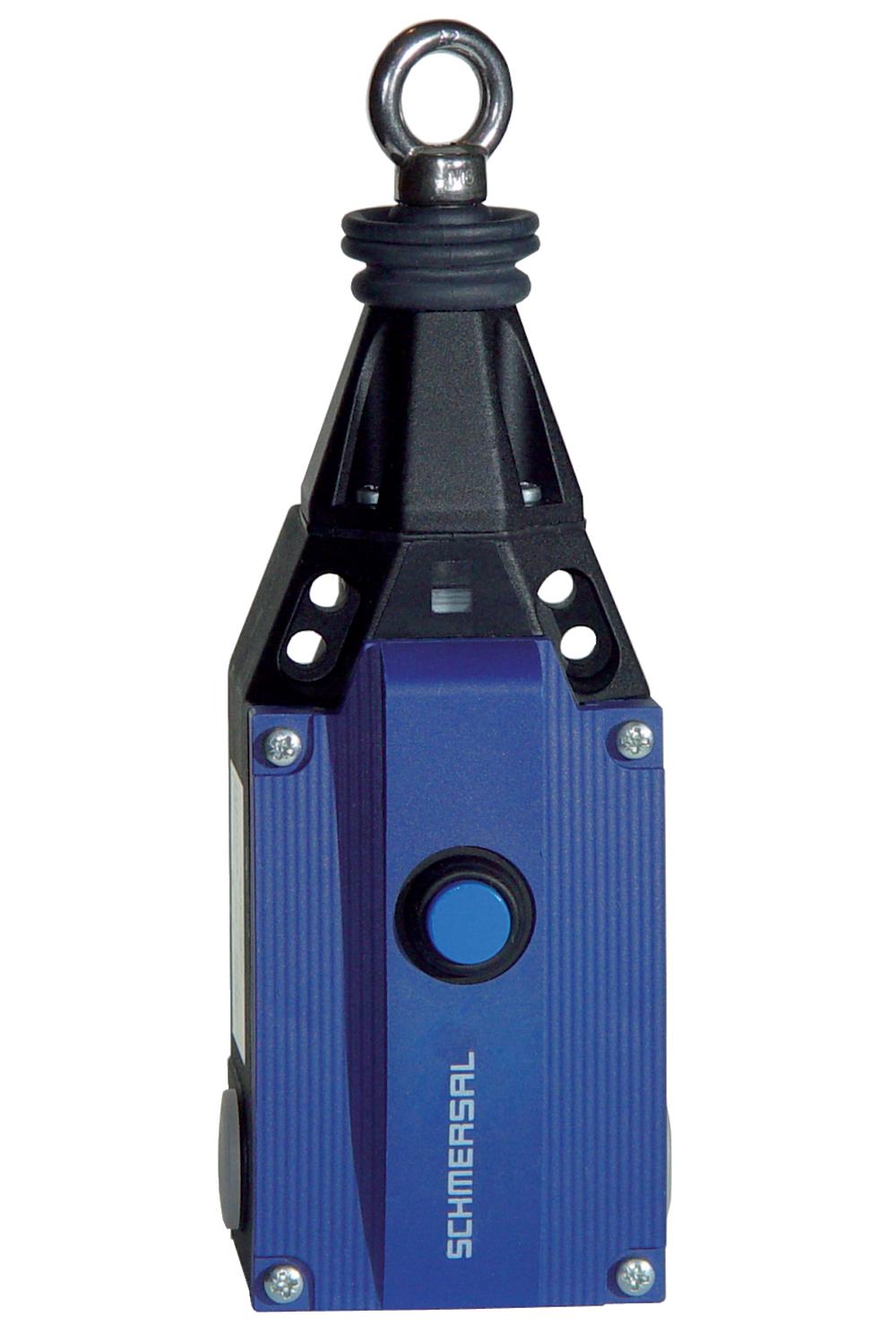

Ensure the safety of your machinery with the Schmersal ZQ Series Pull-wire Emergency Stop Switch. This robust metal-encased switch features a normally closed (NC) opener with snap action for reliable stopping. It is designed without auxiliary contacts and includes four safety contacts, ensuring a secure halt in emergencies. The switch is equipped with a screw connection terminal connector and can handle a thermal test current of 6 A. It operates efficiently within utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 1 A. Ideal for machine safety applications, this pull-wire E-stop provides both durability and dependability where it matters most.

eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	580
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	16 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	616
No. of Safety Contacts	1
Rated Short-circuit Current (A)	100
Sensor Height (mm)	65
Sensor Length (mm)	32.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Roller lever H200
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	ZQ
Standards	EN 81
Terminal Type	Screw terminals M20 x 1.5

Safety Pushbuttons & Operator Devices

SCHMERSAL ZQ900-04 PULL-WIRE EMERGENCY STOP SWITCH 101184416

Product Code: 101184416
