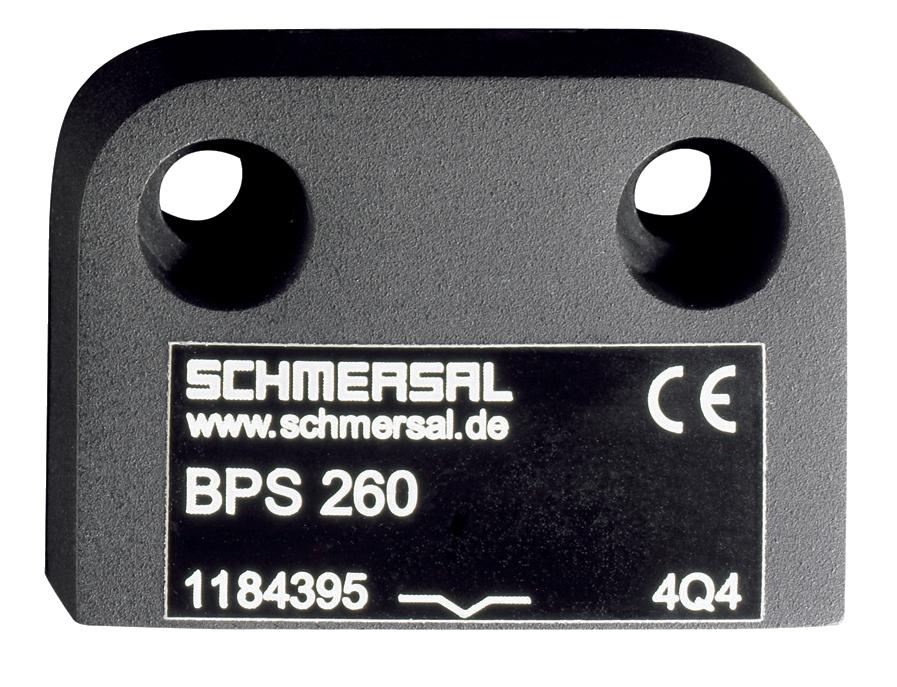

SCHMERSAL BPS260-1 SAFETY SENSOR 101184395

Product Code: 101184395

Explore the Schmersal BPS260 series safety sensor, designed to enhance machine safety. This robust sensor features a plastic enclosure with an actuator measuring 36 mm in length and 26 mm in width, ensuring a compact fit for various applications. Trust in the reliability of Schmersal's engineering for your safety sensor needs within the machine safety category.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-27-27-04
ETIM 6.0 EC002549
ETIM 7.0 EC002549
Gross Weight (g) 840
Maximum Actuating Speed (m/s) 0.3
Maximum Fuse Rating 6 A gG D-fuse slow blow
Minimum Ambient Temperature (°C) 0
Net Weight (g) 38
No. of Safety Contacts 4
Rated Short-circuit Current (A) 100
Sensor Height (mm) 173.5
Sensor Length (mm) 32.5
Switching Element Opener (NC)
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Brand SCHMERSAL
Actuator Type Angle roller lever K250
Contact Material Gold-plated silver (AgNi 15 + Au 0.3µm)
Degree of Protection IP65
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 1000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Series BPS260
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type Cable
