Product Code: 101184391

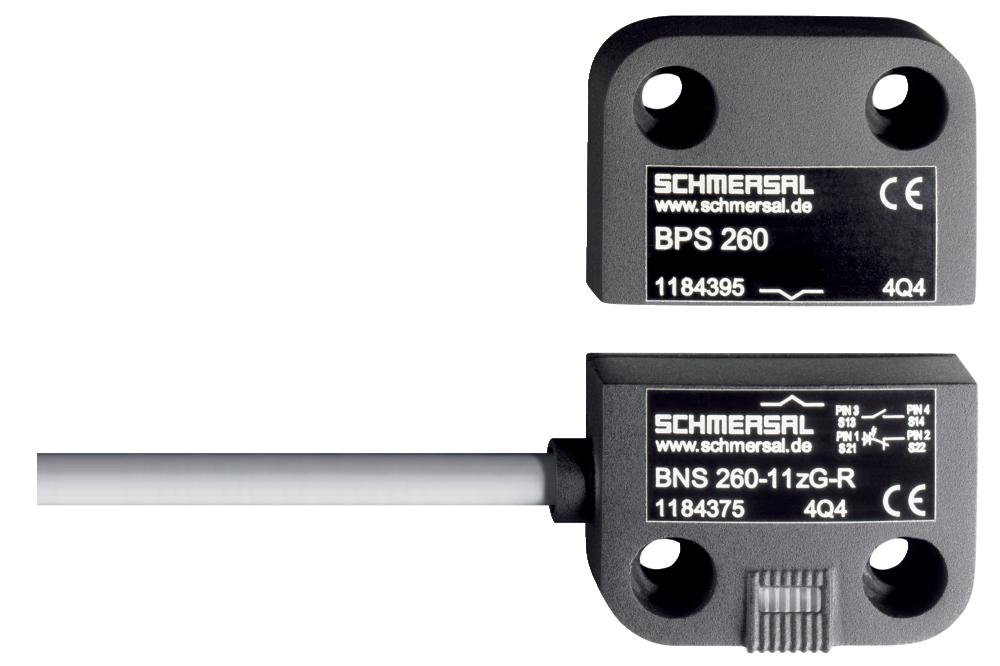

The Schmersal BNS260 safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and an integral system for diagnostics, ensuring reliable operation. This sensor features a single opener and shutter, two safety contacts, and four cable wires for secure connections. The actuating element is magnet-based, suitable for left-hinged doors, and comes with a 1-meter cable for easy installation. It operates at a switching voltage of 24 VDC, with a minimal current of 0.01 A and a switching capacity of 0.2 W. Ideal for engineers looking to enhance machine safety without compromising on efficiency or design simplicity.

eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	616
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	35
No. of Safety Contacts	2
Nominal Output Current (A)	0.01
Nominal Power (W)	0.2
Rated Maximum Operational Voltage DC (V)	24
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	32.5
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Angle roller lever K230
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	30000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	30
Series	BNS260
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Cable

Presence Sensing Safety Devices

SCHMERSAL BNS260-11ZG-L SAFETY SENSOR 101184391
