Product Code: 101184385

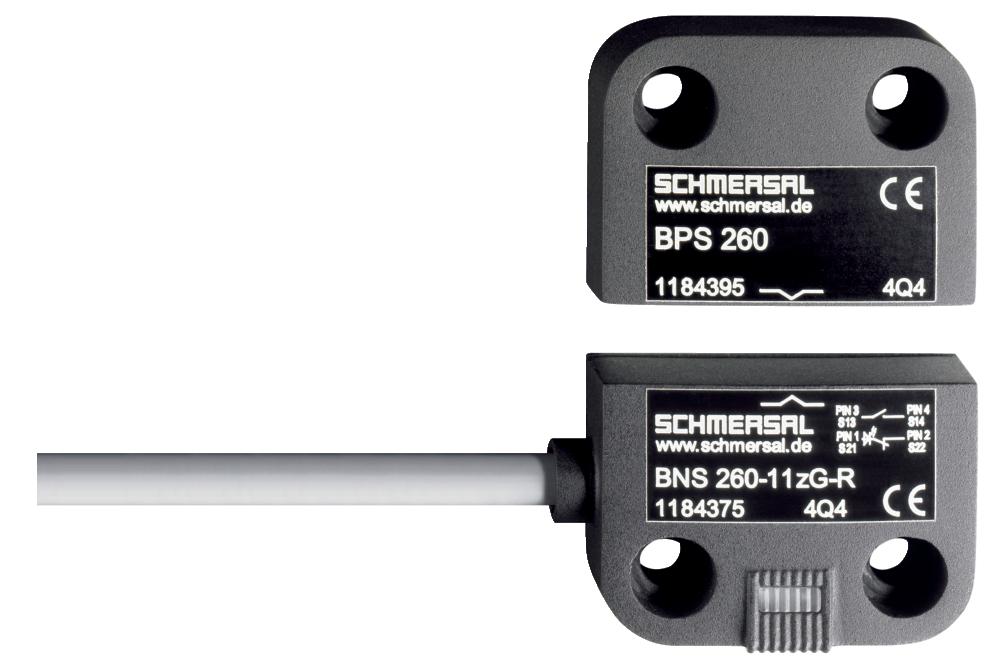

Enhance machine safety with the Schmersal BNS260 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features a magnetic actuating element and is engineered for left-hinged doors. It comes equipped with two openers and two safety contacts, ensuring secure operations. The unit includes a 1-meter cable with a four-wire terminal connector for straightforward installation. With a switching voltage of 75 VDC, current of 0.4 A, and capacity of 10 VA, it's built to handle demanding applications. Trust in the BNS260 series for your safety sensor needs within any industrial setting.

eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC000030
Gross Weight (g)	35
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	33.012
No. of Safety Contacts	4
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	75
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	14.5
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Plunger S200
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1 x 2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	BNS260
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Cable

Presence Sensing Safety Devices

SCHMERSAL BNS260-02Z-L SAFETY SENSOR 101184385
