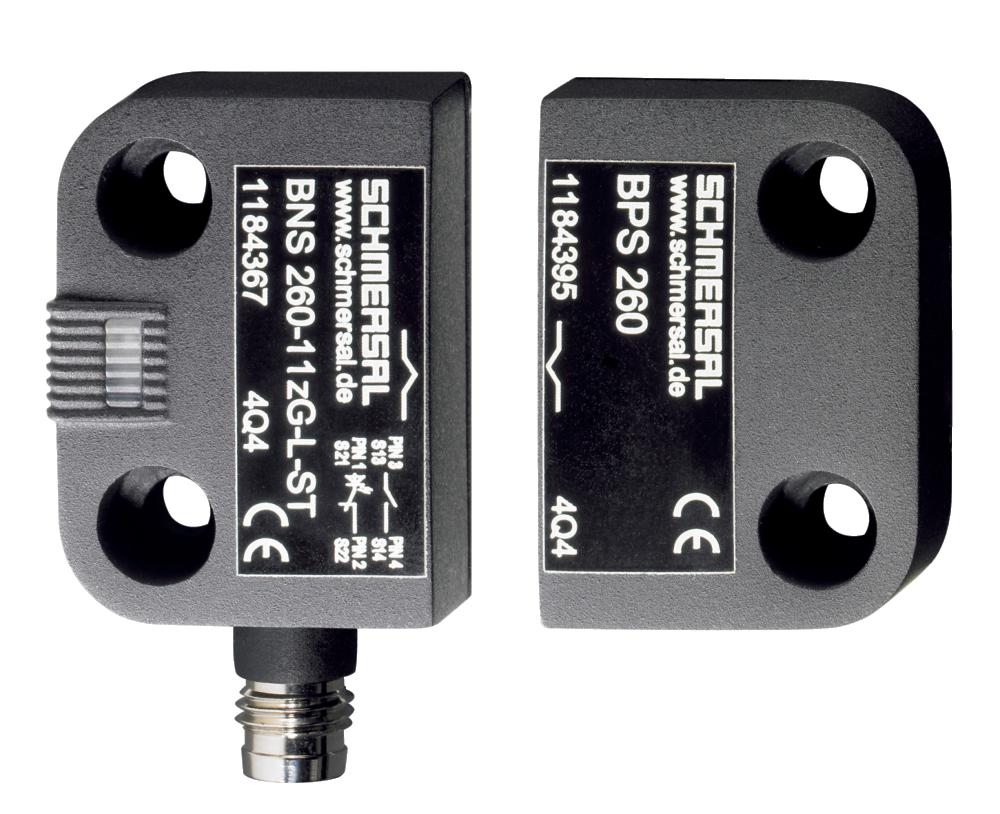

SCHMERSAL BNS260-02/01ZG-ST-R SAFETY SENSOR 101184366

Product Code: 101184366

Enhance your machine safety with the Schmersal BNS260 series safety sensor. This robust device, encased in a durable thermoplastic enclosure, is designed for reliable operation with integral system diagnostics. It features a magnetic actuating element and is suitable for right-hinged doors. The sensor supports three openers and includes two safety contacts. Its efficient electrical specifications include a switching voltage of 24 VDC, a low switching current of 0.01 A, and a switching capacity of 0.2 W. The unit comes equipped with an 8 mm 6-pole connector with latching interlocking for secure connections. Trust in Schmersal's commitment to machine safety with this precision-engineered safety sensor from their BNS260 series.

Technical Specifications

Actuator Type Roller lever N200
Enclosure Material Plastic, glass-fibre-reinforced
Gross Weight (g) 20
Net Weight (g) 2725
Maximum Temperature (°C) 70
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series BNS260
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-27-01
ETIM 7.0 EC001831
ETIM 6.0 EC001487
eCl@ss Number, Version 11.0 27-27-26-06
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 1 x 2.5
Minimum Cable Cross Section (mm²) 0.25
Contact Material Silver
Maximum Actuating Speed (m/s) 0.3
Maximum Fuse Rating 10 A gG D-fuse slow blow
Minimum Mechanical Life 20000000 Operations
No. of Safety Contacts 2
Nominal Output Current (A) 0.01
Nominal Power (W) 0.2
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Maximum Operational Voltage DC (V) 24
Rated Short-circuit Current (A) 100
Switching Element Opener (NC)
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Sensor Length (mm) 14.5
Sensor Height (mm) 90
Degree of Protection IP67
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
