Product Code: 101184329

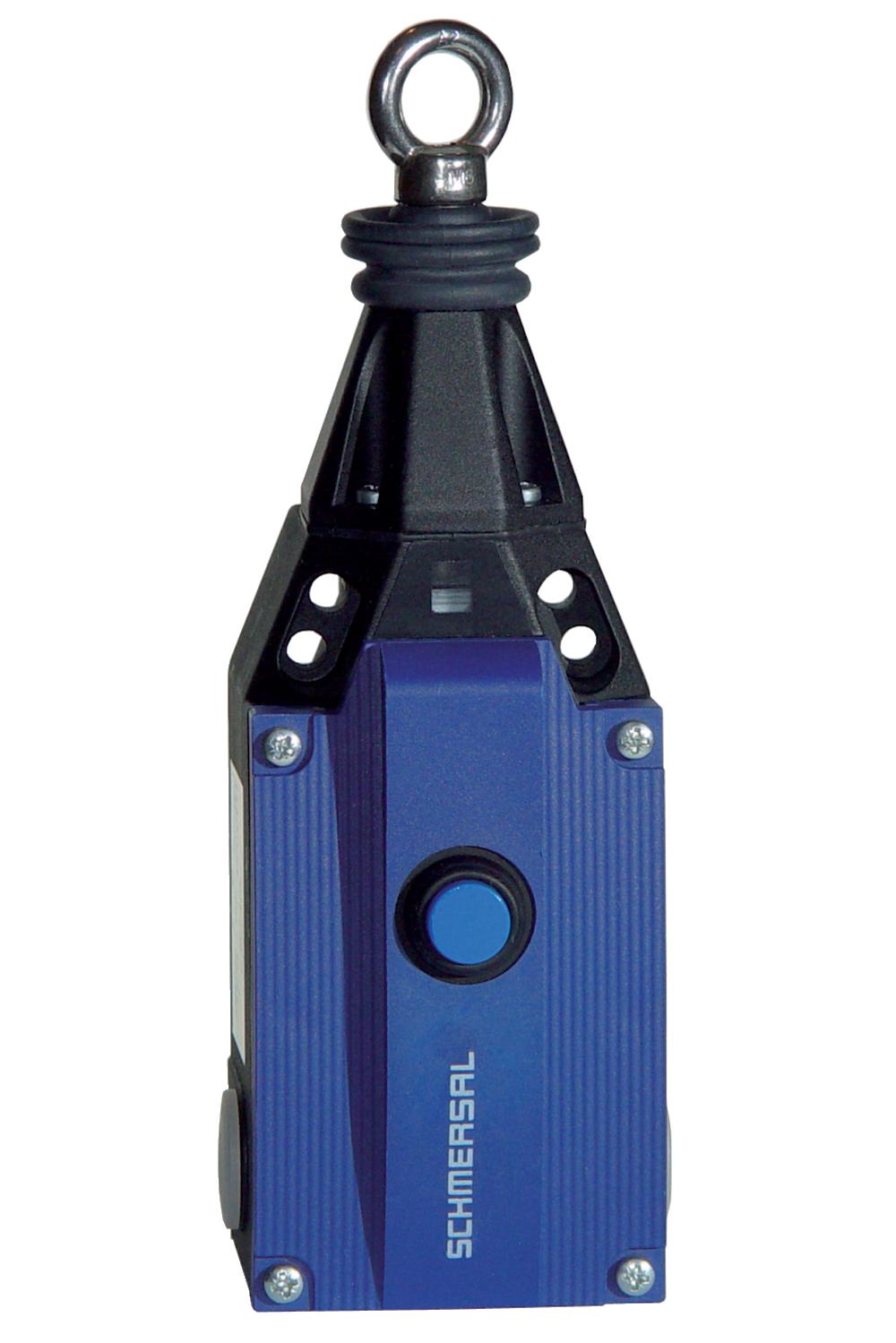

Ensure the safety of your machinery with the Schmersal ZQ Series Pull-wire Emergency Stop Switch. This robust metal-enclosed switch features both NO and NC contact types with snap action for reliable operation. It includes two auxiliary contacts and two safety contacts, all connected via a secure screw connection. Rated for a thermal test current of 6 A, it can handle up to 230 VAC at 4 A in AC-15 utilization category and up to 24 VDC at 1 A in DC-13 utilization category. Designed for machine safety applications, this pull-wire E-stop is an essential component for any engineering safety system.

eCl@ss Number, Version 11.0	27-27-27-01
eCl@ss Number, Version 9.0	27-27-27-01
ETIM 6.0	EC001831
ETIM 7.0	EC000030
Gross Weight (g)	2775
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	192.32
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	14.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Angle roller lever K230
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	ZQ
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5
