eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	70
Maximum Actuating Speed (m/s)	3
Maximum Fuse Rating	6 A gG D-fuse quick blow
Minimum Ambient Temperature (°C)	-30
Net Weight (g)	215
No. of Safety Contacts	4
Rated Short-circuit Current (A)	100
Sensor Height (mm)	25
Sensor Length (mm)	46
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Plunger
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.2
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	50
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

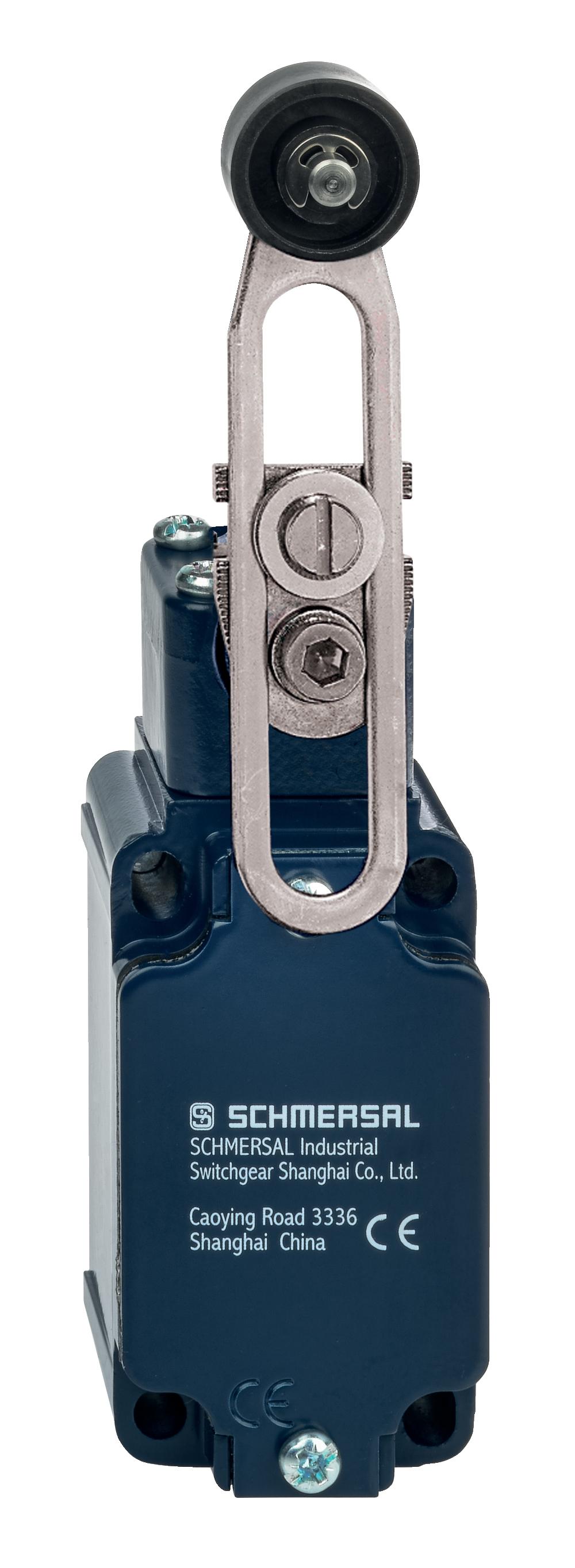

SCHMERSAL POSITION SWITCH WITH SAFETY FUNCTION 101180448
