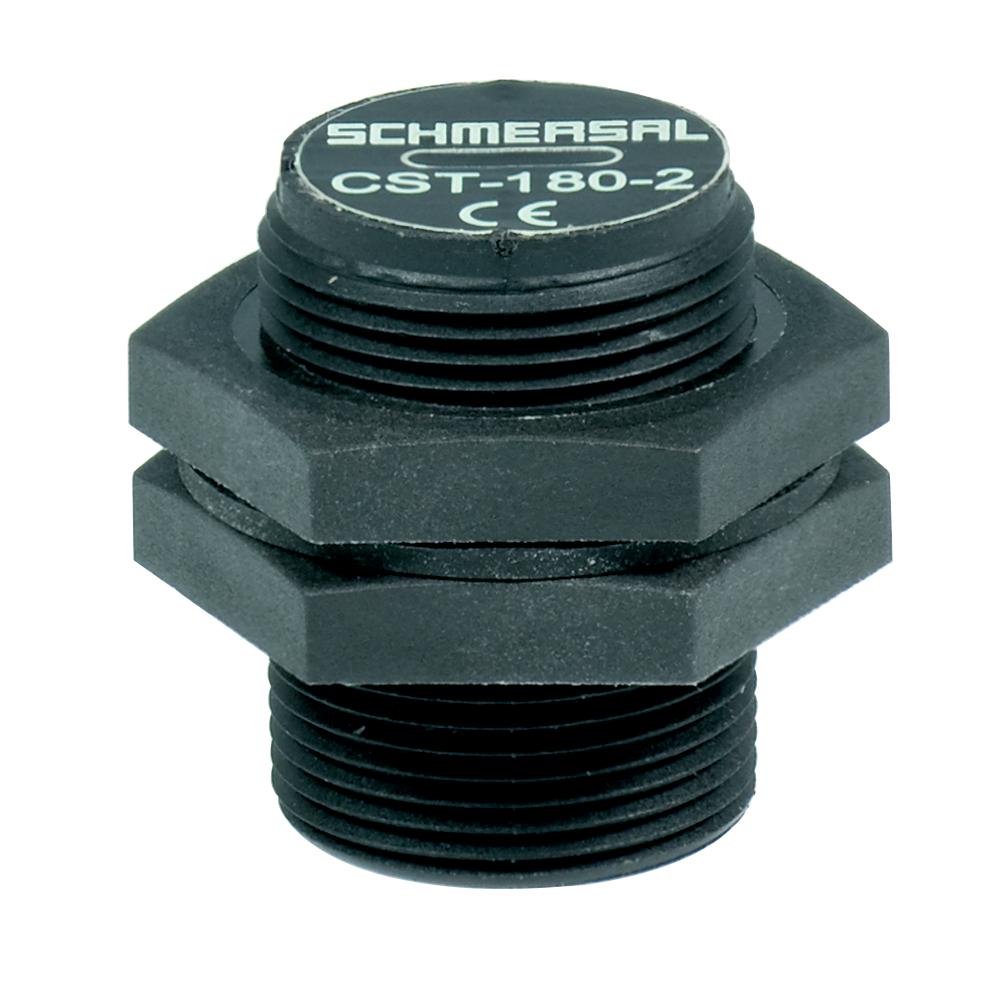

SCHMERSAL CST180-2 SAFETY SENSOR 101179574

Product Code: 101179574

Explore the Schmersal CST180 series safety sensors, designed for machine safety applications. These sensors feature a robust plastic enclosure with an M18 diameter actuator and a width of 25 mm, ensuring reliable operation and integration into various safety systems. Trust in Schmersal's commitment to safeguarding your machinery with precision-engineered safety solutions.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Gross Weight (g) 50
Maximum Actuating Speed (m/s) 3
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Net Weight (g) 75
No. of Safety Contacts 1
Rated Short-circuit Current (A) 100
Sensor Height (mm) 147.5
Sensor Length (mm) 40
Switching Element NO contact, NC contact
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 2.5 A
Working Principle RFID
Brand SCHMERSAL
Actuator Type Rod lever
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.34
Minimum Mechanical Life 10000000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Series CST180
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Terminal Type Screw terminals M20 x 1.5
