Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	90
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-30
Net Weight (g)	109.52
No. of Safety Contacts	4
Rated Short-circuit Current (A)	100
Sensor Height (mm)	84
Sensor Length (mm)	60.55
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	2.5 A
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Plunger
Contact Material	Silver
Degree of Protection	IP40
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	65
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Standards	EN IEC 60947-5-1 / EN ISO 14119
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

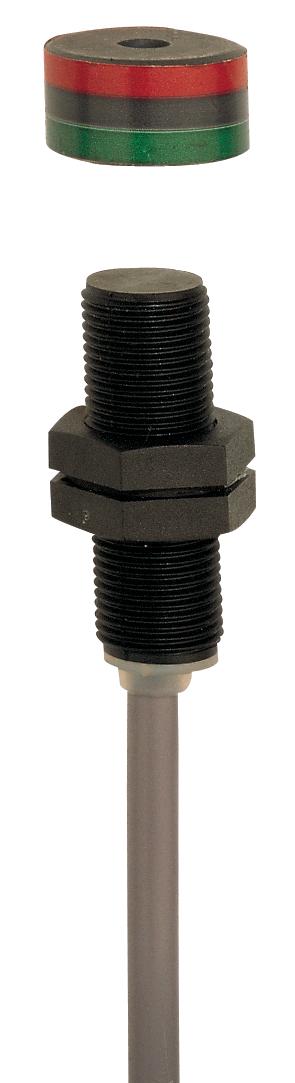

SCHMERSAL ENCLOSED MAGNETIC SAFETY SENSOR 101178078
