SCHMERSAL AZM161-B1-2177 SOLENOID INTERLOCK 101176642

Product Code: 101176642

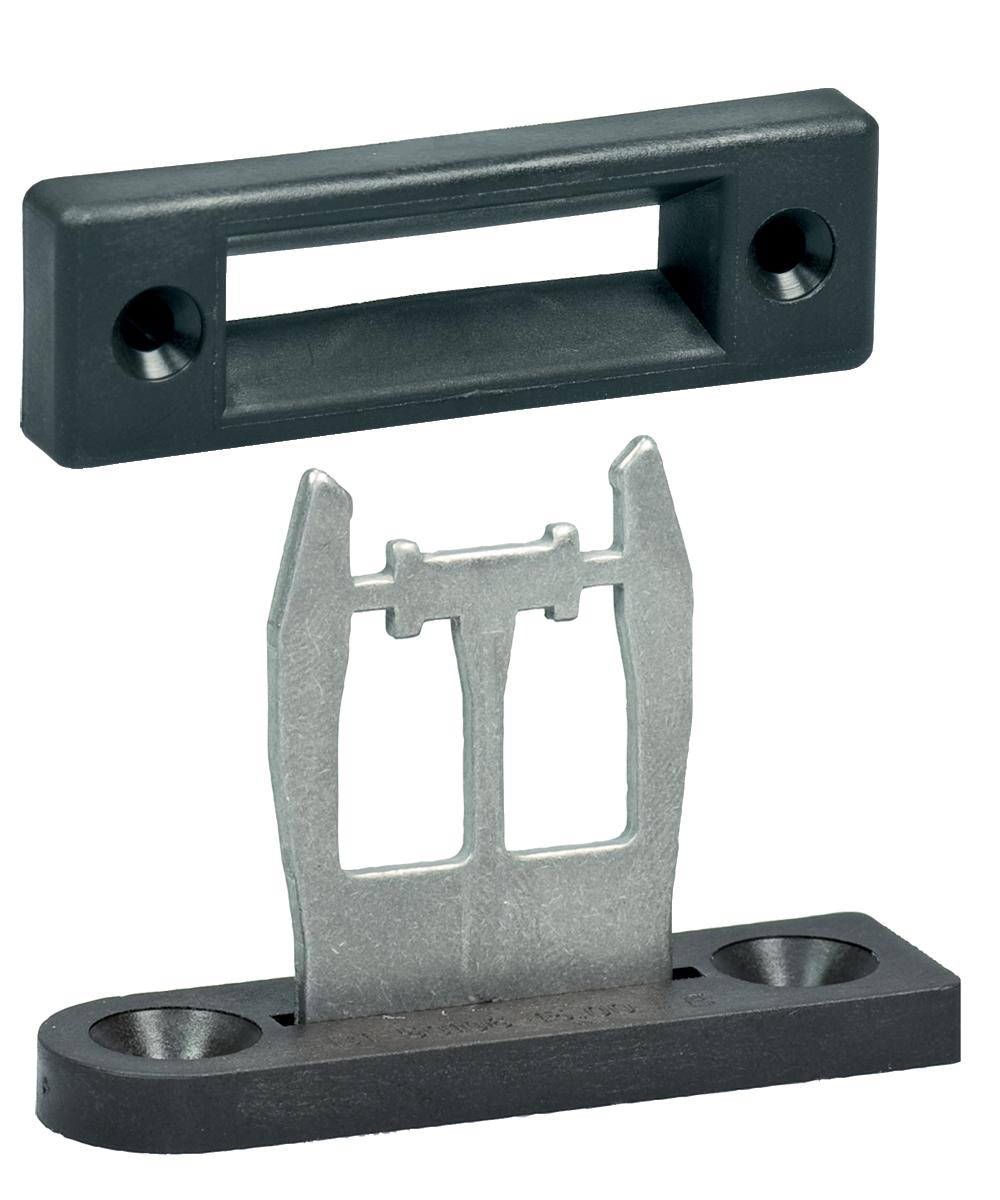

Enhance your machine safety with the Schmersal AZM161 Series Solenoid Interlocks, featuring a durable straight actuator with centering guide. Constructed from robust stainless steel (V2A), this rigid actuator is designed for reliability and longevity in safeguarding equipment. Trust in the Schmersal brand for dependable machine safety solutions.

Technical Specifications

Brand SCHMERSAL
Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Gross Weight (g) 524
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Net Weight (g) 73
No. of Safety Contacts 2
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 85.6
Sensor Length (mm) 57.25
Switching Element NO contact, NC contact
Switching Principle Snap action
Utilisation Category DC-13 | AC-15
Working Principle Inductive
Actuator Type Roller plunger
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Light alloy die-casting
Maximum Ambient Temperature (°C) 65
Maximum Cable Cross Section (mm²) 1 x 1.0 , flexible
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 1000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Series AZM161
Standards EN 81-20 / EN 81-50
Terminal Type Connector M12, 6-pole
