SCHMERSAL AZM 161-B1F SOLENOID INTERLOCK 101175431

Product Code: 101175431

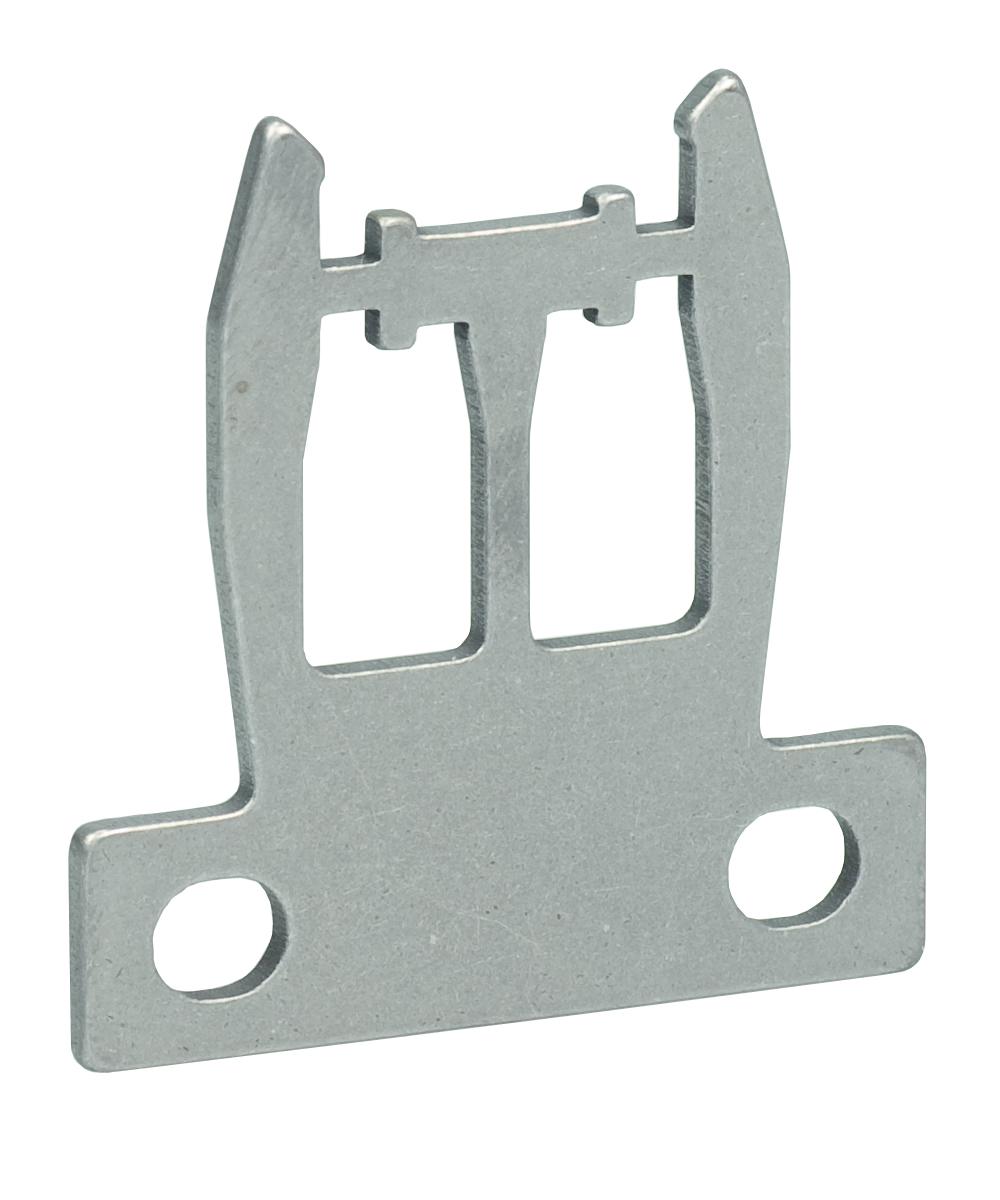

Enhance your machine safety with the Schmersal AZM161 Series solenoid interlocks, featuring a durable straight actuator made from robust stainless steel (V2A). This precision-engineered component is designed to seamlessly integrate into your safety systems, ensuring reliable protection and operation in demanding industrial environments. Trust in Schmersal's commitment to quality for your machine safety solutions.

Technical Specifications

Brand SCHMERSAL
Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-24-90-92
ETIM 6.0 EC000030
ETIM 7.0 EC001487
Explosion Protection Category 3D | 3G
Gross Weight (g) 840
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -25
Net Weight (g) 93.5
No. of Safety Contacts 1
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 117
Sensor Length (mm) 100
Switching Element Opener (NC)
Switching Principle Snap action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 1.5 A
Working Principle Inductive
Actuator Type Offset roller lever
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Thermosetting resin
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 20000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 250
Series AZM161
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Terminal Type Cable
