Product Code: 101173580

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precise position detection in industrial environments. This AC 2-wire block proximity switch boasts a notable 30 mm sensing distance and is equipped with both NO and NC contacts for versatile applications. The durable plastic enclosure ensures longevity, while the operating voltage range of 15 to 250VAC and a maximum current of 500 mA cater to various electrical requirements. With a switching frequency of 10 Hz and digital output specifications of 4.5 V and 0.2 A, this two-wire sensor maintains reliable performance even in the presence of inductive interference. Engineered to operate within a temperature range of -25°C to 70°C and certified with an IP67 rating according to EN 60529, it promises resilience against harsh conditions. Ideal for engineers seeking dependable position sensors, the Schmersal IFL Series offers precision, durability, and ease of installation with its screw connection feature.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	23-17-06-01
eCl@ss Number, Version 9.0	27-37-12-16
ETIM 6.0	EC002594
ETIM 7.0	EC001832
Gross Weight (g)	250
Housing Construction Form	Block
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	4 A gG D-fuse to DIN EN 60269-1
Maximum Nominal Output Voltage DC (V)	4.5
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	27
No. of Safety Contacts	2
Nominal Output Current (A)	0.5
Rated Maximum Operational Voltage AC (V)	250
Rated Minimum Operational Voltage AC (V)	15
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	90
Sensor Length (mm)	158
Switching Element	Normally open contact (NO)
Switching Principle	Snap action
Utilisation Category	AC-15
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Plunger S200
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1 x 1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	30000000 Operations
Mounting Type	Threaded
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	IFL
Standards	EN IEC 60947-5-1
Terminal Type	Cable

Position Switches & Sensors

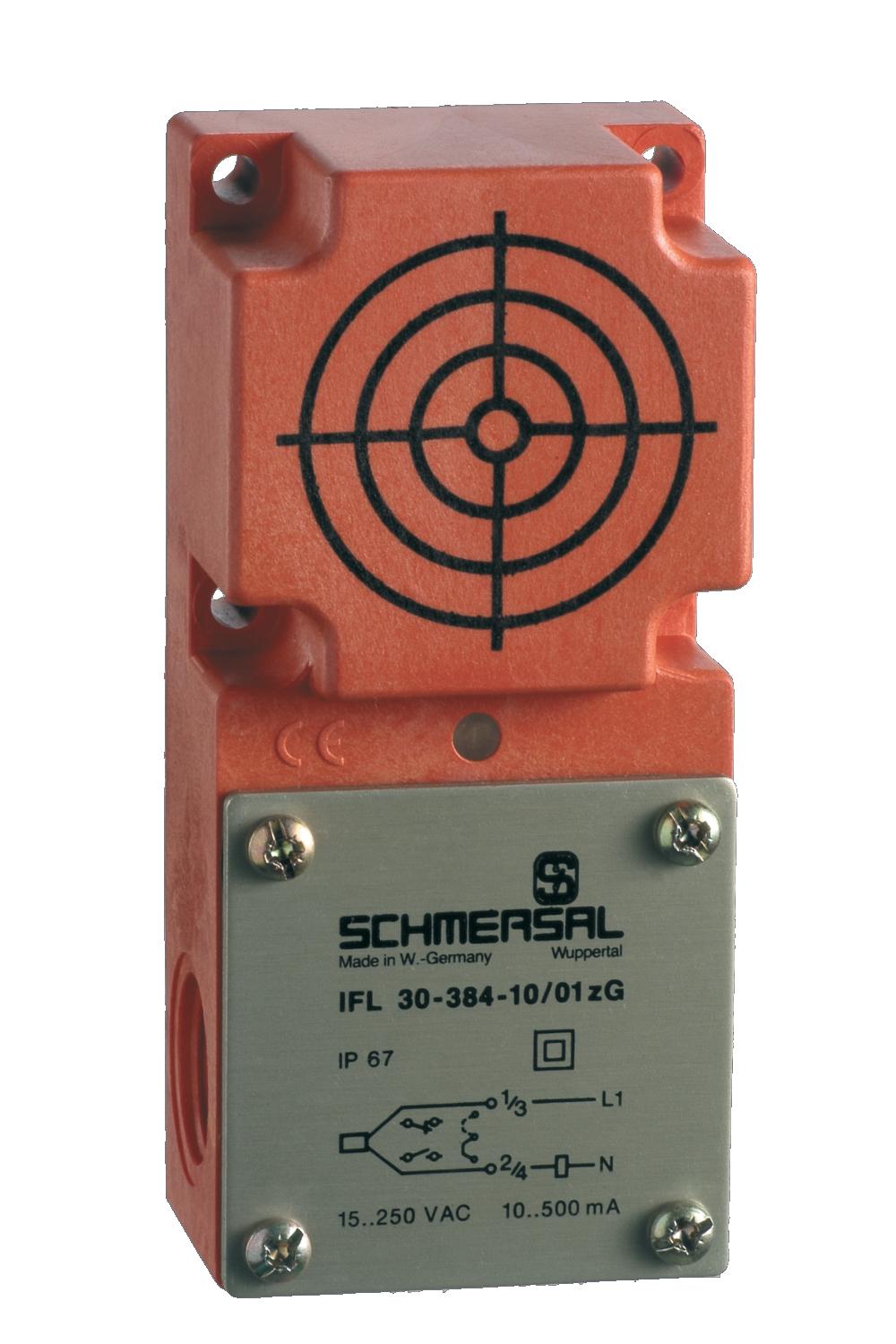

SCHMERSAL IFL30-384-10/01-M20 INDUCTIVE PROXIMITY SWITCH 101173580
