Product Code: 101173397

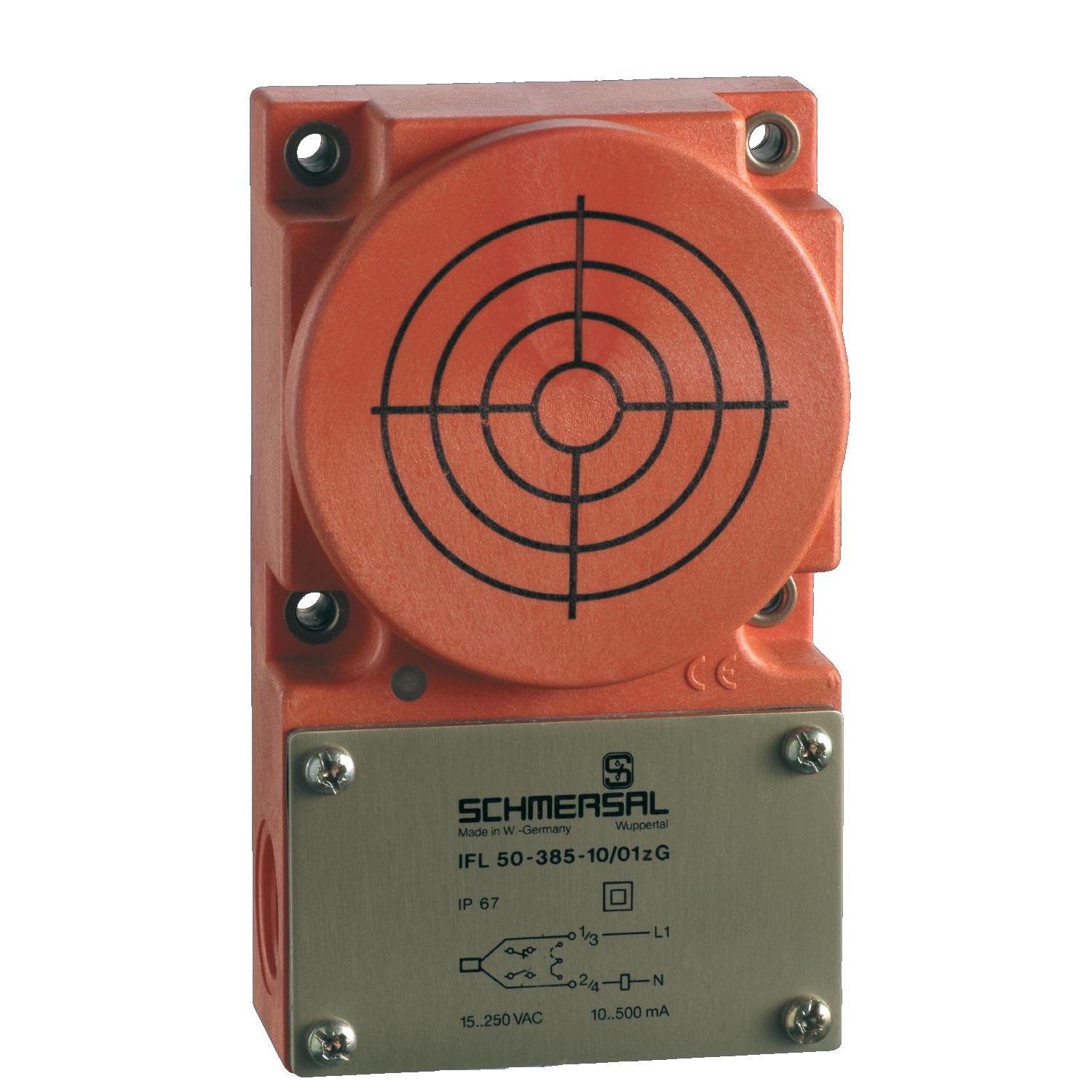

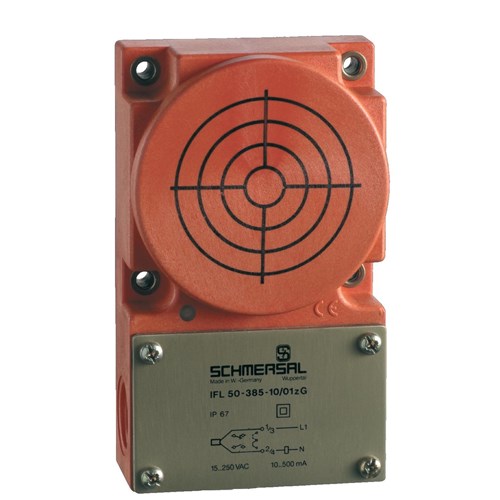

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precise positioning tasks. This AC 2-wire block sensor offers a substantial 50 mm switching distance and is equipped with both NO and NC contacts for versatile operation. The durable plastic enclosure ensures longevity, while the operating voltage range of 15-250VAC at 500 mA caters to various industrial applications. With a switching frequency of 10 Hz and digital output specifications of 4.5 V and 0.2 A, this two-wire device stands out with its inductive interference protection. It operates reliably within a temperature range of -25°C to 70°C and boasts an IP67 rating, confirming its resistance to dust and water ingress. Ideal for engineers seeking reliable position sensors in demanding environments.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-37-12-16
eCl@ss Number, Version 9.0	27-27-27-03
ETIM 6.0	EC000200
ETIM 7.0	EC002549
Gross Weight (g)	1480
Housing Construction Form	Block
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Nominal Output Voltage DC (V)	4.5
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	85
No. of Safety Contacts	1
Nominal Output Current (A)	0.5
Rated Maximum Operational Voltage AC (V)	250
Rated Minimum Operational Voltage AC (V)	15
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	90
Sensor Length (mm)	63
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Plunger S200
Contact Material	AgSn0, self-cleaning, positive drive
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1 x 1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	20000000 Operations
Mounting Type	Threaded
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	IFL
Standards	EN ISO 13849-1 / EN IEC 62061
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

SCHMERSAL IFL50-385-10/01-M20 INDUCTIVE PROXIMITY SWITCH 101173397

Product Code: 101173397
