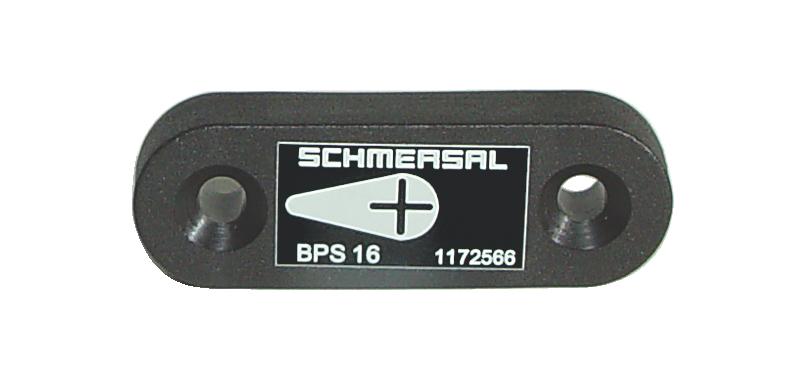

SCHMERSAL BPS16 SAFETY SENSOR 101172566

Product Code: 101172566

Enhance your machine safety with the Schmersal BPS series coded magnet actuator. Designed for reliability, this safety sensor features a durable plastic enclosure, ensuring robust protection in various industrial environments. Ideal for integration into safety systems that demand precision and longevity, the BPS series is a trusted solution from Schmersal's reputable line of machine safety products.

Technical Specifications

Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-27-27-04
ETIM 6.0 EC002549
ETIM 7.0 EC002549
Gross Weight (g) 125
Housing Construction Form Block
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 4 A gG D-fuse to DIN EN 60269-1
Minimum Ambient Temperature (°C) -30
Net Weight (g) 55
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 84
Sensor Length (mm) 124
Switching Element Normally open contact (NO)
Switching Principle slow action, positive break NC contact
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Working Principle Inductive
Brand SCHMERSAL
Actuator Type Offset roller lever K370
Contact Material Silver
Degree of Protection IP67 / IP65
EAN 4030660000000
Enclosure Material Light alloy die-casting
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 30000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Series BPS
Standards EN 81-20 / EN 81-50
Terminal Type Screw terminals M20 x 1.5
