Product Code: 101172554

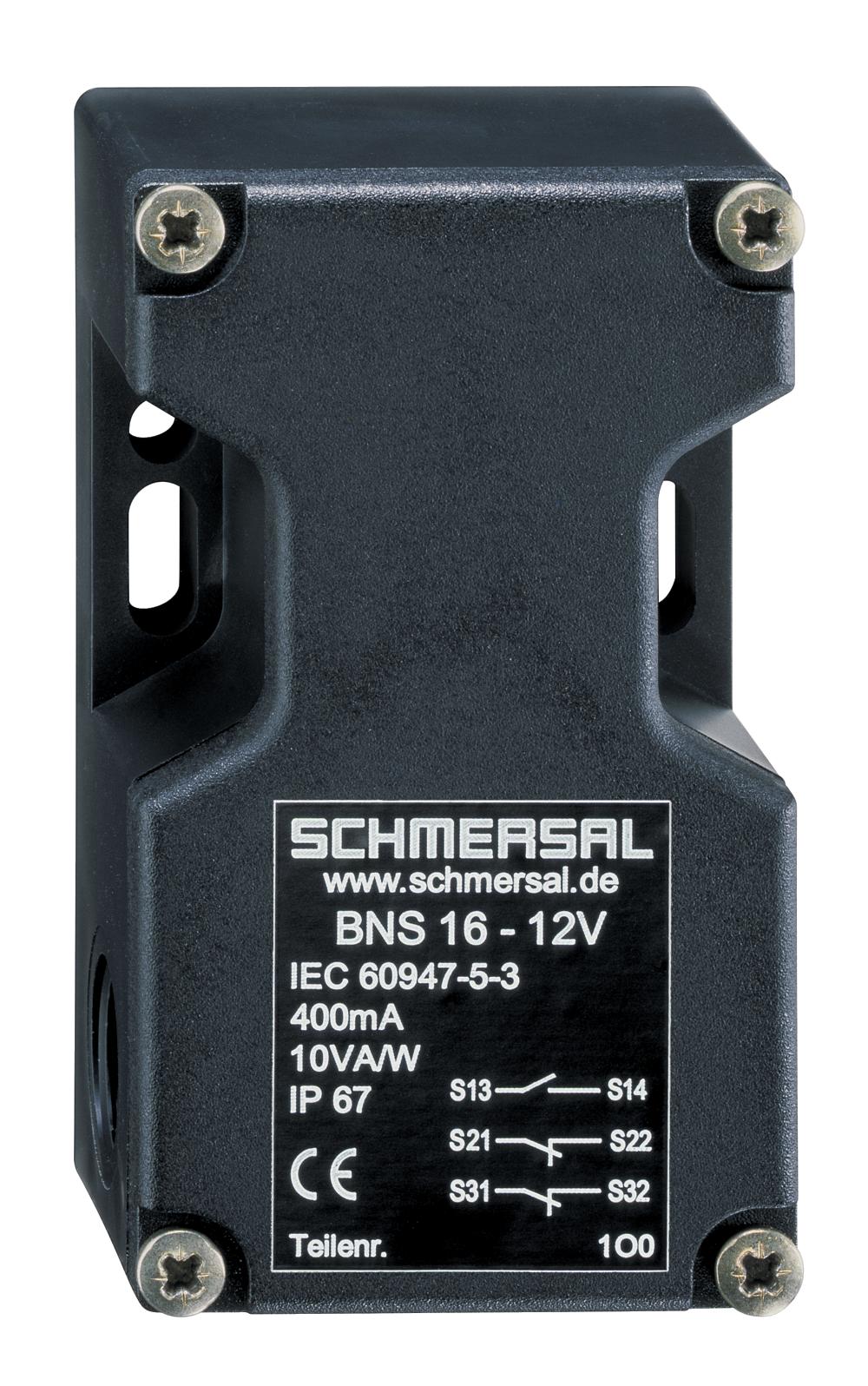

The Schmersal BNS16 is a robust safety sensor designed for machine safety applications, featuring a durable thermoplastic enclosure. This sensor requires an external evaluation unit and offers two openers and one shutter for versatile integration into safety systems. It operates with a magnetic actuating element on the left-hand side, ensuring reliable detection. The BNS16 connects via screw terminals and handles switching voltages up to 100 V AC/DC with a current of 0.4 A and a maximum switching capacity of 10 W. Note that this model does not include semi-conductor outputs, safety contacts, or fail-safe digital outputs. Ideal for engineers seeking dependable coding and monitoring solutions within their machinery's safety framework.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	180
Housing Construction Form	Block
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	125
No. of Safety Contacts	1
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage AC (V)	100
Rated Maximum Operational Voltage DC (V)	100
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	114
Sensor Length (mm)	30
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Working Principle	Inductive
Actuator Type	Roller plunger S300
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Series	BNS16
Standards	EN 81-20 / EN 81-50
Terminal Type	Cable

Presence Sensing Safety Devices

SCHMERSAL BNS16-12ZL SAFETY SENSOR 101172554
